Skid Steer Disc Mulcher BD Pro X

Outpower the Overgrowth

The Skid Steer Disc Mulcher BD Pro X attachment sets a new standard in land management. Engineered for maximum use and constant productivity, this game-changing Belt Drive Disc Mulcher features the fastest spool-up time and is designed to work as hard as you do.

disc mulcher belt drive rendering

Key Features

1 year product warranty included
High torque belt drive assembly offers a fast spool up time
Replaceable bolt-in liner extends the life of the disc mulcher
Equipped with four-point steel teeth for the most productive cut

Specifications

cut width icon

Cut Width

60″

weight icon

Weight (LBS)

2,500

flow range icon

Flow Range

High
32-50 GPM

cut capacity icon

Cut Capacity

Up to 14″ diameter trees and brush

Belt-Driven Brilliance

Experience the game-changing high-torque motor and belt drive system of the Skid Steer Disc Mulcher BD Pro X. This revolutionary design optimizes torque delivery, allowing for swift recovery and cooler operation.

skid steer disc mulcher belt drive

Outpaces, Outpowers, Outclasses Anything in the Market

Unmatched in a Class of its Own

  • Engineered for world-class productivity and designed for contractors and mulching professionals
  • Efficient design that promotes lower hydraulic temperatures for maximum uptime and carrier life
  • Increased disc speed during reprocessing and back-dragging delivers constant production take take down up to 14″ trees
  • Disc speeds up during re-processing and back-dragging, allowing operators can finish the job in less time

Durability and Productivity

  • ~13-second spool up time – recovering twice as fast as other disc mulchers
  • 60″ mulching disc acts like a flywheel to store energy
  • 2 intake options to accommodate material size
  • Bolt-on tooth holders to provide quick and easy maintenance in the shop or field
  • Two-speed hydraulic motor technology coupled with a belt drive for the most demanding jobs
skid steer disc mulcher belt drive

In The field

Engineered for maximum use and constant productivity, this game-changing Belt Drive Disc Mulcher is designed to work as hard as you do.

  • Thicker tree and brush processing
  • Vegetation management
  • Commercial land clearing
  • Environmental restoration
  • Reclaim property
  • Pre-commercial thinning
  • Minimum ½” thick polycarbonate operator protection required. Some applications may require additional protection.

Learn more about how the Belt Drive is the most productive mulcher out there.

13 SECOND SPOOL-UP TIME

Our market-leading Piston 125cc motor spools to full speed in ~40 seconds. The Belt Drive reaches full speed in ~13 seconds!

The Disc Mulcher BD Pro X provides class-leading torque to obliterate anything in its path, recovers twice as fast as other disc mulchers, and has an efficient design that promotes lower hydraulic temperatures for maximum uptime and carrier life.

  • Two-speed hydraulic motor technology coupled with a belt drive for the most demanding jobs
  • Increased disc speed during reprocessing and back-dragging delivers constant production
  • Optimized motor size delivers greater efficiency and takes full advantage of the mulcher’s potential

*Actual spool time will vary.

belt drive motor with label

2 INTAKE OPTIONS

Wide Intake – Standard

  • Optimized to feed
  • Larger, bushier
  • Trees efficiently

Narrow Intake – Optional

  • Bolt-on ramp
  • Used for single-stem trees
Belt Drive Chute

Standard Tooth Offering

Four Point® Hardened Steel Teeth

Acting like an axe to slice material for the most productive cut, this aggressive design allows you to grab and pull in material more effectively. These teeth can be sharpened and rotated to increase efficiency and productivity, as well as lengthen tooth life.

Fixed teeth located on the inside of the deck shell, which mulches material as the disc carries it through

Ideal for:

  • Limited ground contact
  • Finer mulch
  • High-production environments
  • Softer soils
Disc Mulcher teeth Belt Drive

Twin Maul® Carbide Teeth Usage with Disc Mulcher

Working in more rocky terrain? Try adding the Twin Maul Carbine Teeth along side your 4-Point Teeth. When installing Twin Maul® Carbine Teeth on the Forestry Disc Mulcher, it is important you place them on the underside of the disc only. Learn more about Twin Maul tooth placement

Ideal for:

  • Rocky terrain
  • Operating conditions with repetitive ground contact
  • Less tooth maintenance on the bottom of the disc

By keeping the Four-Point Hardened Steel Teeth on the cutting edge of the disc, you have an essential sharp edge to slice through trees. Additionally, it allows you to more effectively use the Cut and Feed and Vertical Mulch operating techniques.

*The Skid Steer Forestry Disc Mulcher comes equipped with Four-Point Hardened Steel Teeth. Twin Maul® Carbide Teeth are available for purchase on our parts website.

Customizable Teeth Options

Choose from a variety of teeth options for your specific needs, ensuring optimal performance and versatility.

These aggressive teeth act like an axe, grabbing and pulling in material for the most productive cut. Sharpen and rotate them for increased efficiency and longer tooth life.

Mix-and-match compatible – teeth are interchangeable, allowing you to mix and match teeth while maintaining balance.

This option is ideal for:

  • Limited ground contact
  • Finer mulch
  • High-production environments
  • Softer soils

With a tooth life 3-to-5 times longer than steel, our virgin, domestically-sourced carbide teeth are designed to withstand extreme abrasion and ground contact.

Mix-and-match compatible – teeth are interchangeable, allowing you to mix and match teeth while maintaining balance.

This option is ideal for:

  • Rocky terrain
  • Rental fleets
  • Fire-danger areas
  • Less maintenance

Check Compatibility

Select the make of your carrier to view the corresponding compatibility chart.

ASV Compatibility

ASV Compatibility Chart

Get a Quote

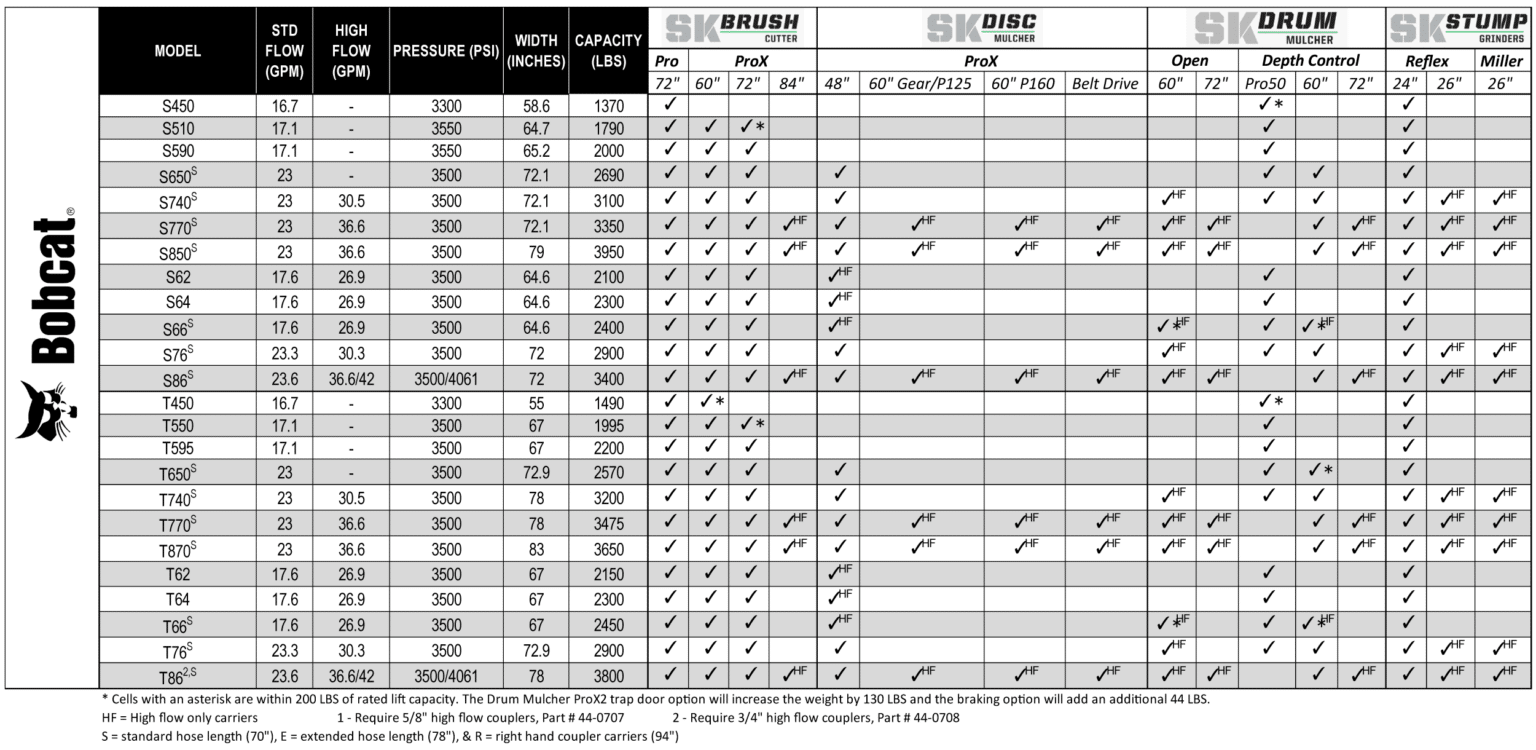

Bobcat Compatibility

Bobcat Compatibility Chart

Get a Quote

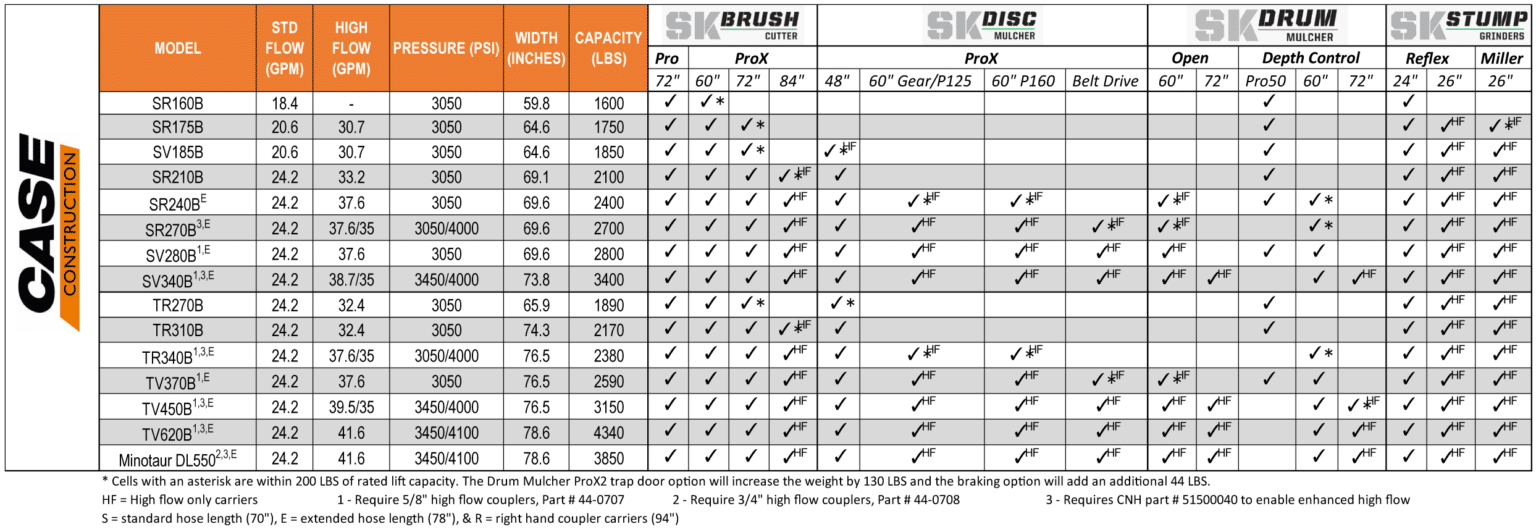

Case IH Compatibility

Case Compatibility Chart

Get a Quote

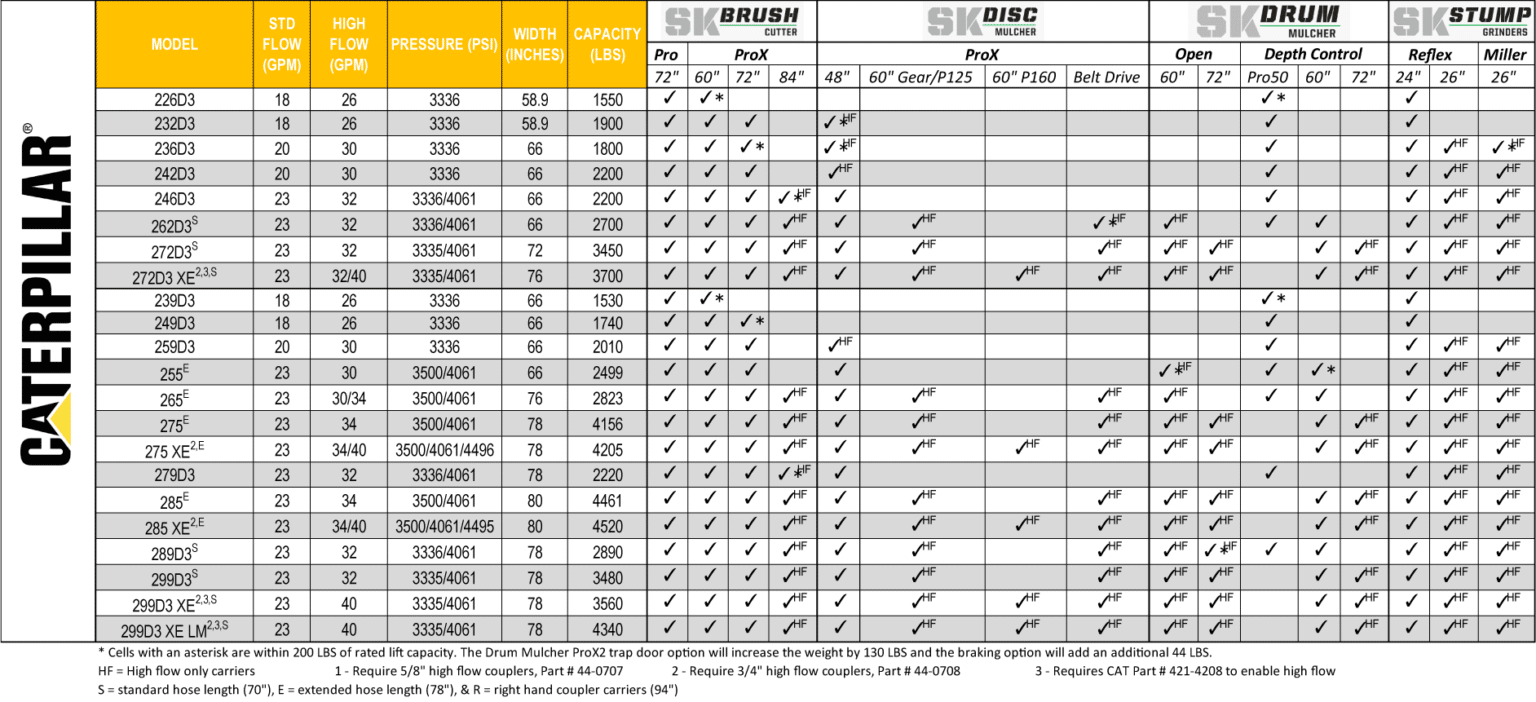

Caterpillar Compatibility

CAT Compatibility Chart

Get a Quote

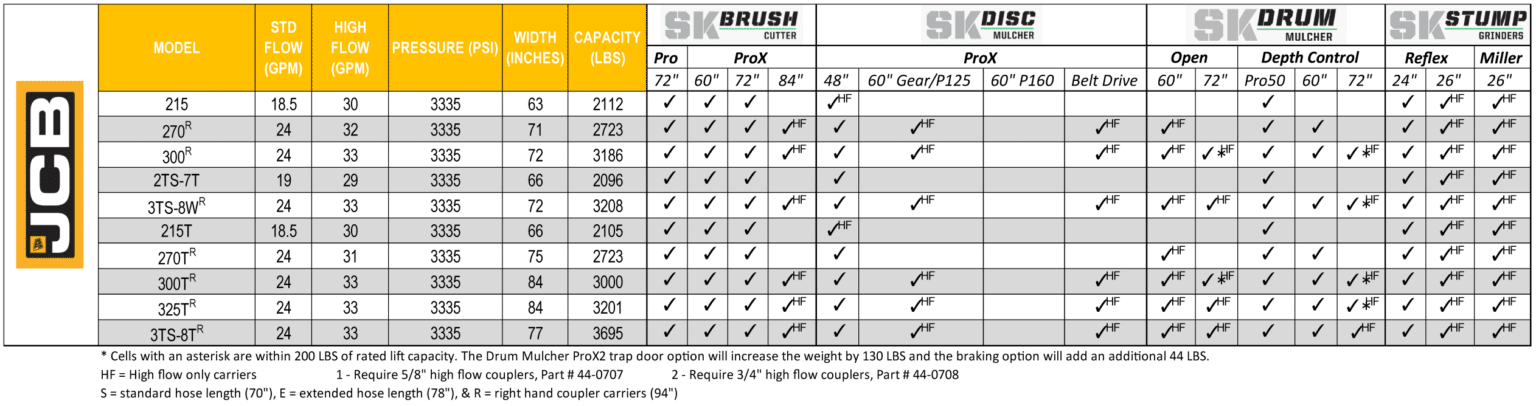

JCB Compatibility

JCB Compatibility Chart

Get a Quote

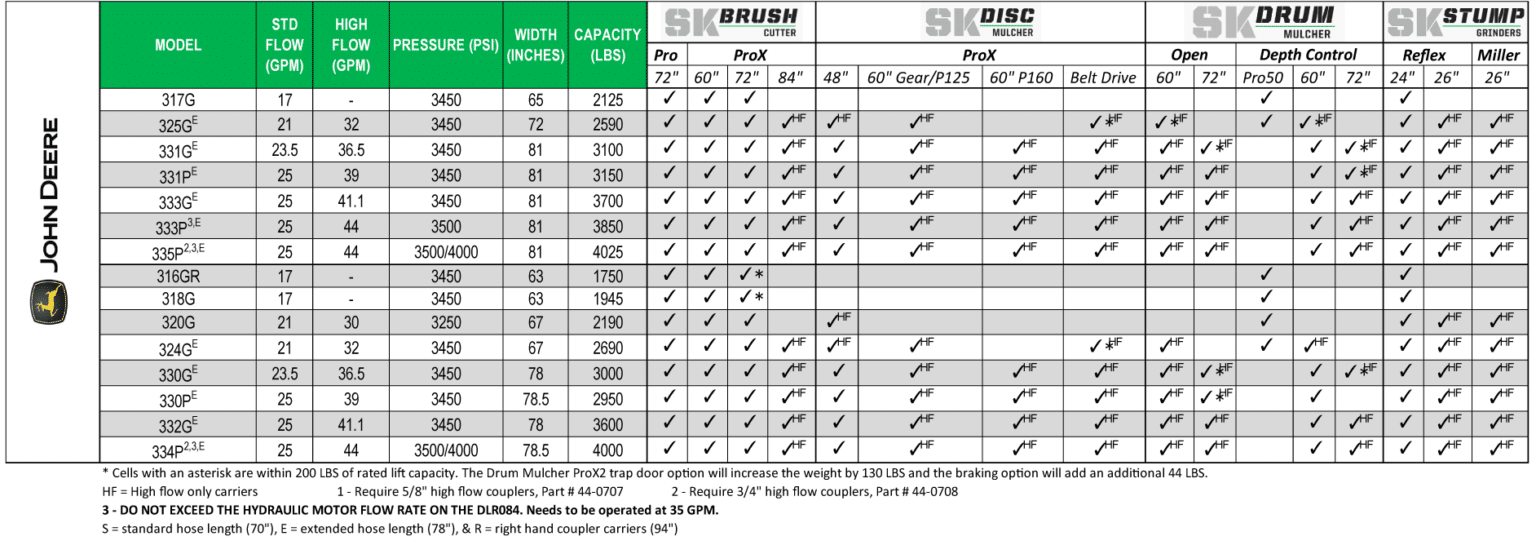

John Deere Compatibility

john deere compatibility chart for skid steer attachments

Get a Quote

Kioti Compatibility

Kioti Compatibility Chart

Get a Quote

Kubota Compatibility

Kubota Compatibility Chart

Get a Quote

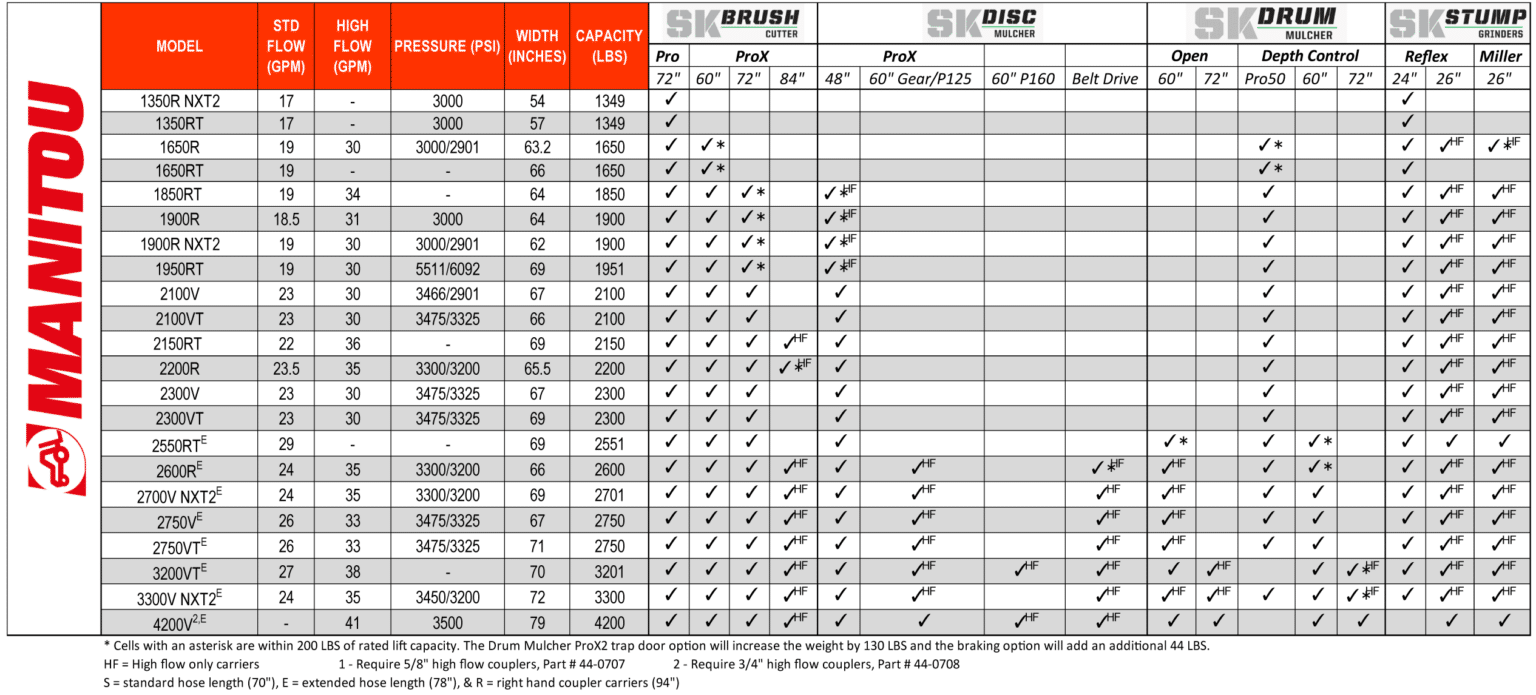

Manitou Compatibility

Manitou Compatibility Chart

Get a Quote

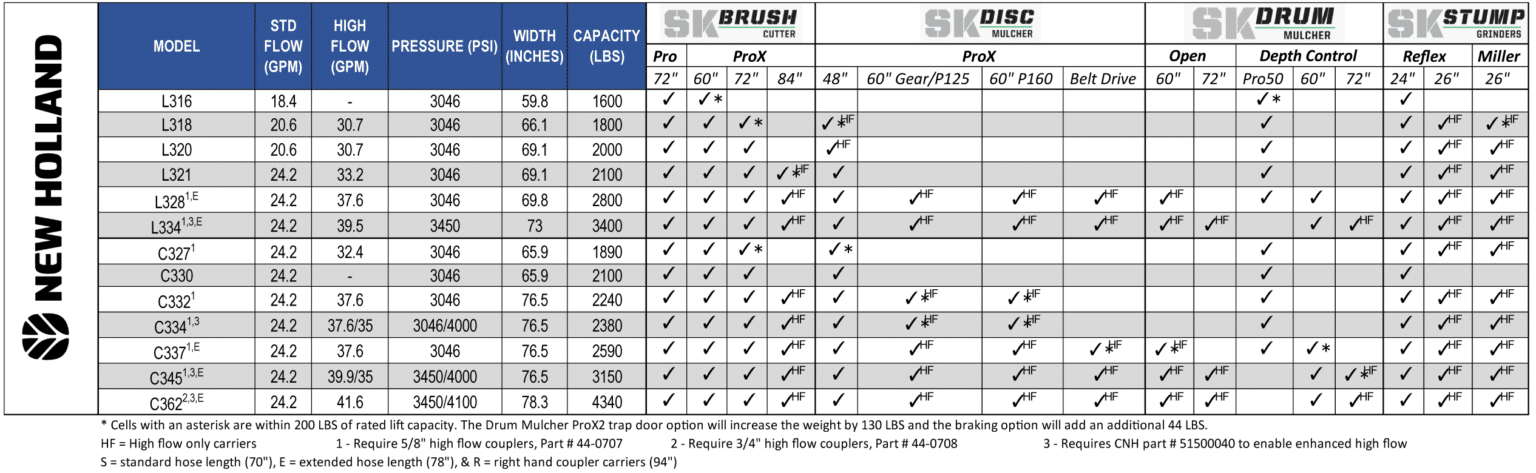

New Holland Compatibility

New Holland Compatibility Chart

Get a Quote

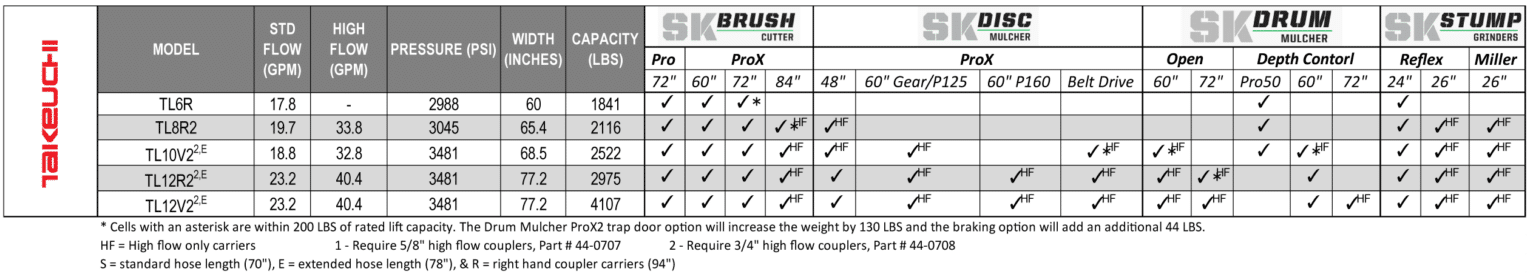

Takeuchi Compatibility

Takeuchi Compatibility Chart

Get a Quote

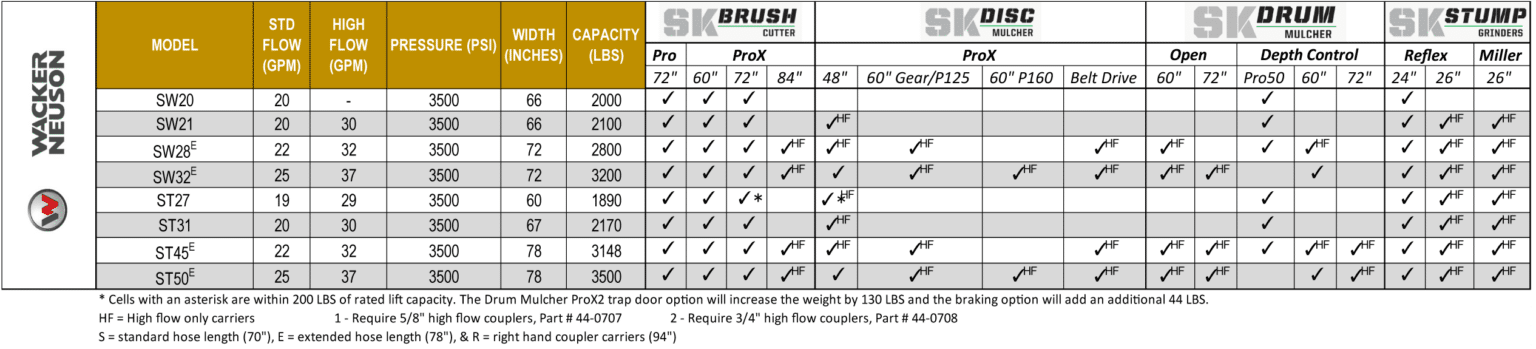

Wacker Neuson Compatibility

Wacker Compatibility Chart

Get a Quote

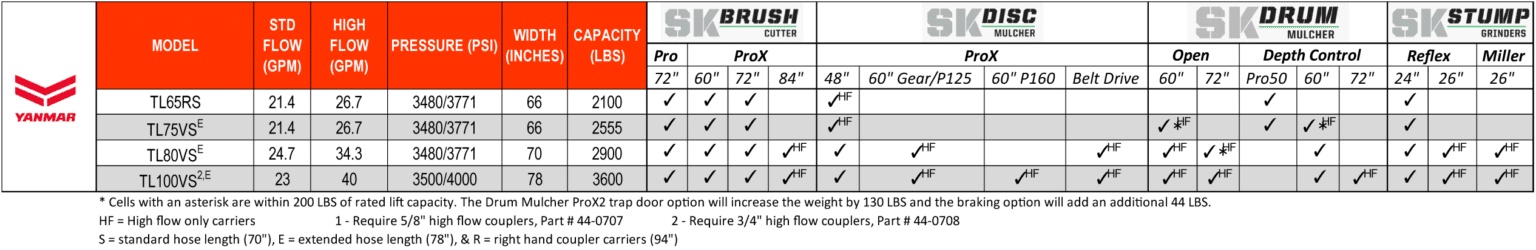

Yanmar Compatibility

Yanmar Compatibility Chart

Get a Quote
