Tractor Flail Mower

Reliable Performance, Polished Results

Transform acres of overgrown terrain into manicured landscapes with the Tractor Flail Mower. This attachment handles grass and light brush while leaving a clean, professional finish.

tractor with diamond attachment

Specifications

cut width icon

Cut Width

60″ | 75″ | 90″ | 102″

configuration icon

Configurations

side | rear | twin | triple | rear swing

brush icon

Cut Capacity

Up to 2″ diameter brush

Key Features

1 year product warranty included
2-year ground roller bearing warranty
Flail mowers provide a manicured cut
Knives are self-cleaning and reversible, providing extended life to your mower
The discharge flap and bonnet shield protect the equipment, operator and bystanders

Smart Design, Less Downtime

Our sealed oil bath ground roller keeps you working, not waiting. No daily greasing needed. It handles tight turns without scuffing and resists material buildup.

tractor diamond flail mower

Flail Mower Configurations

Manage Vegetation Precisely

tractor diamond flail mower

Side Flail

  • Hydraulically driven
  • Available in 60″, 75″, or 90″ widths
Tractor Rear Flail

Rear Flail

  • 540 PTO Drive
  • Cat II 3-Point Hitch
  • Available in 90″ and 102″ widths
  • Available in center and offset models
tractor diamond flail mower

Twin Flail

  • Hydraulically driven side and PTO rear
  • Covers larger areas, up to 16′
  • Highly efficient
  • Offset option ensures overlap with side flail
tractor diamond flail mower

Traditional Triple Flail

  • Side flails are available in 60”, 75” and 90” widths
  • Rear flail 110” cut width
  • 540 RPM PTO driven
  • Overall cut width of 17.5’, 19.5’ and 22’
  • Independent side mower controls
  • Available on Deere 6000E series tractors
Rear Swing Flail 1

Rear Swing Flail

  • 540 PTO Drive
  • Cat II 3-Point Hitch
  • Available in 75″ widths
  • Ability to swing out past the rear tire on most tractors
  • Mows at a 50° down angle
  • Mows at a 90° vertical angle
  • Provides a finished cut in hard-to-reach places with side shift and drop
  • Able to run in standard or reverse rotation to match cutting conditions

Configurations

Area Coverage

Compare how each of our attachment configurations covers area per pass.

renders of tractors showing configurations of flail mowers

Hydraulic Cooler

Stay Cool Under Pressure

Virtually impossible to overheat, the hydraulic cooler comes standard on all Diamond Boom Mower Products. It is mounted to a pump & grill guard and includes an auxiliary light for enhanced visibility.

tractor hydraulic cooler

Industry Leading Ground Roller

  • Lubricated in a sealed oil bath, the ground roller requires no daily maintenance or greasing.
  • The tapered ground roller edge keeps turns smooth without scuffing, while decreasing wear from road edges.
  • Bearings are located inside the ground roller tube for added protected from contamination. This also allows increased clearance at the bearing supports, limiting material build-up at the edges of the mower.
ground roller exploded view

In the Field

Provides a cut that’s manicured and clean

  • Pasture maintenance
  • Roadside clearing
  • Large plot vegetation control
  • Road and irrigation ditch maintenance
  • Park maintenance
  • Ditch mowing
  • Pond and shore maintenance

Read more about Swing Flail Mower Applications.

Flail Mower vs Rotary Mower – Which Is Best for Your Job?



Tractor Flail

Check Compatibility

Select the make of your carrier to view the corresponding compatibility chart.

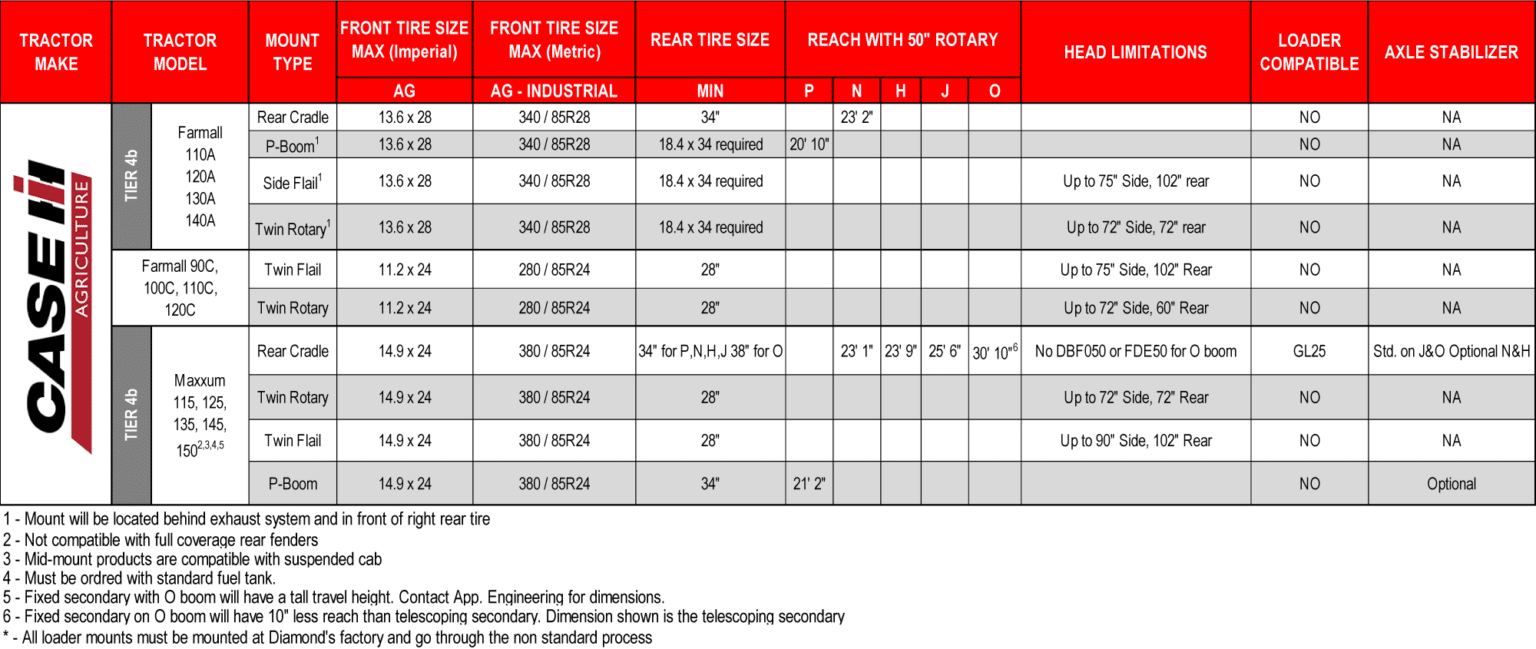

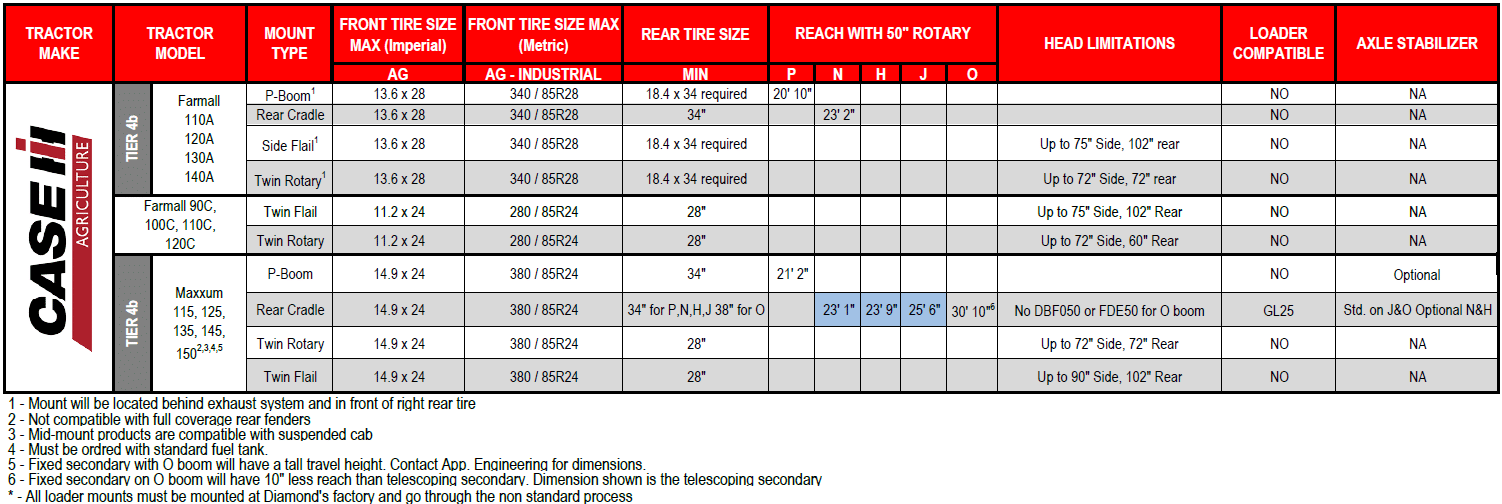

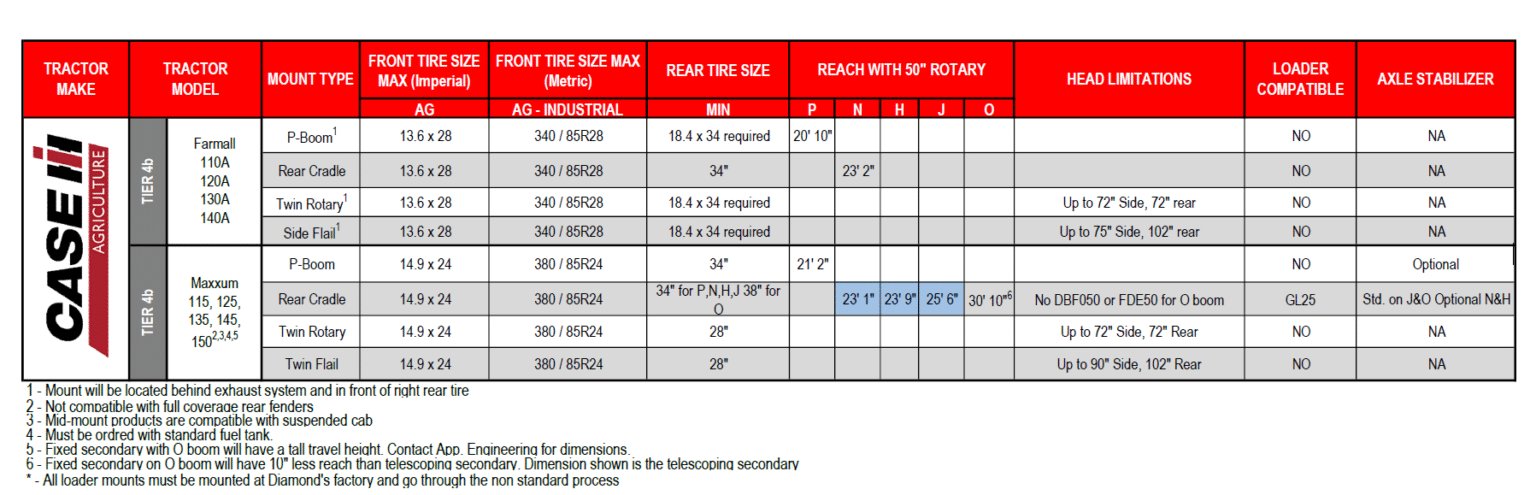

Case IH Compatibility

case compatibility chart

Get a Quote

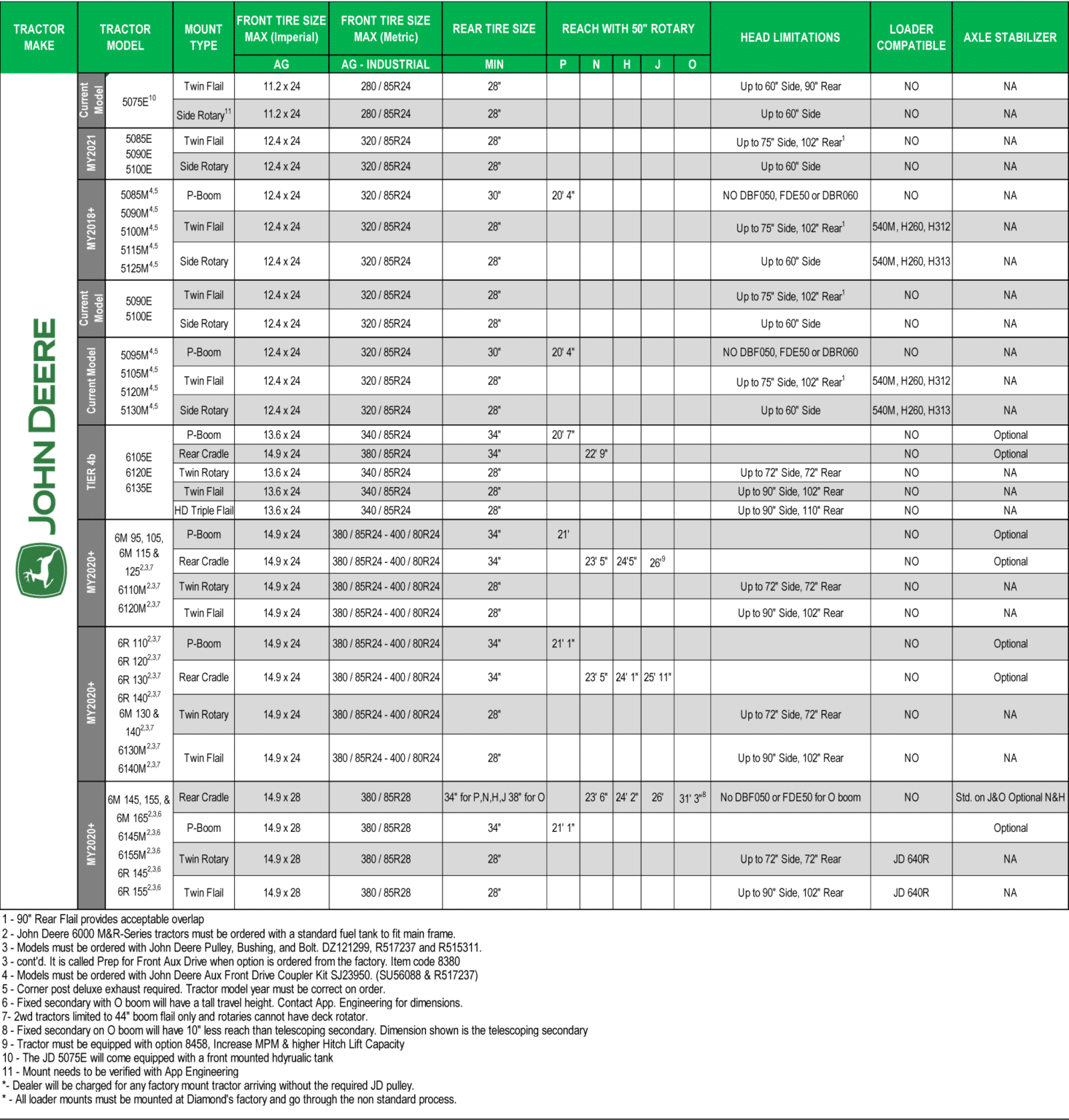

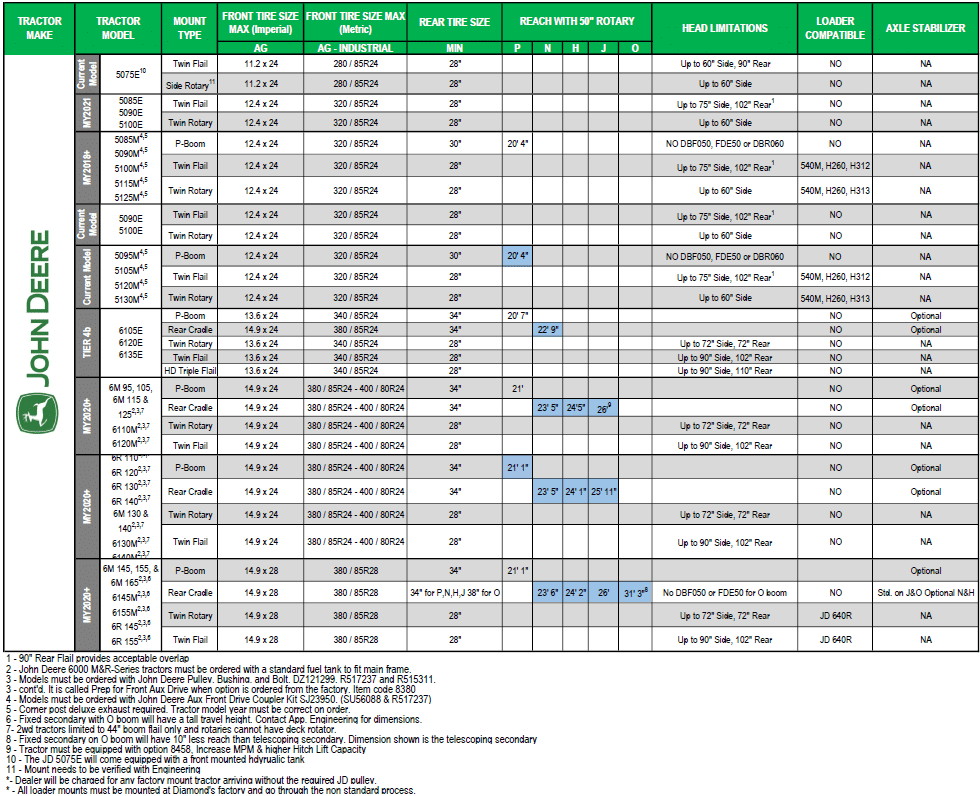

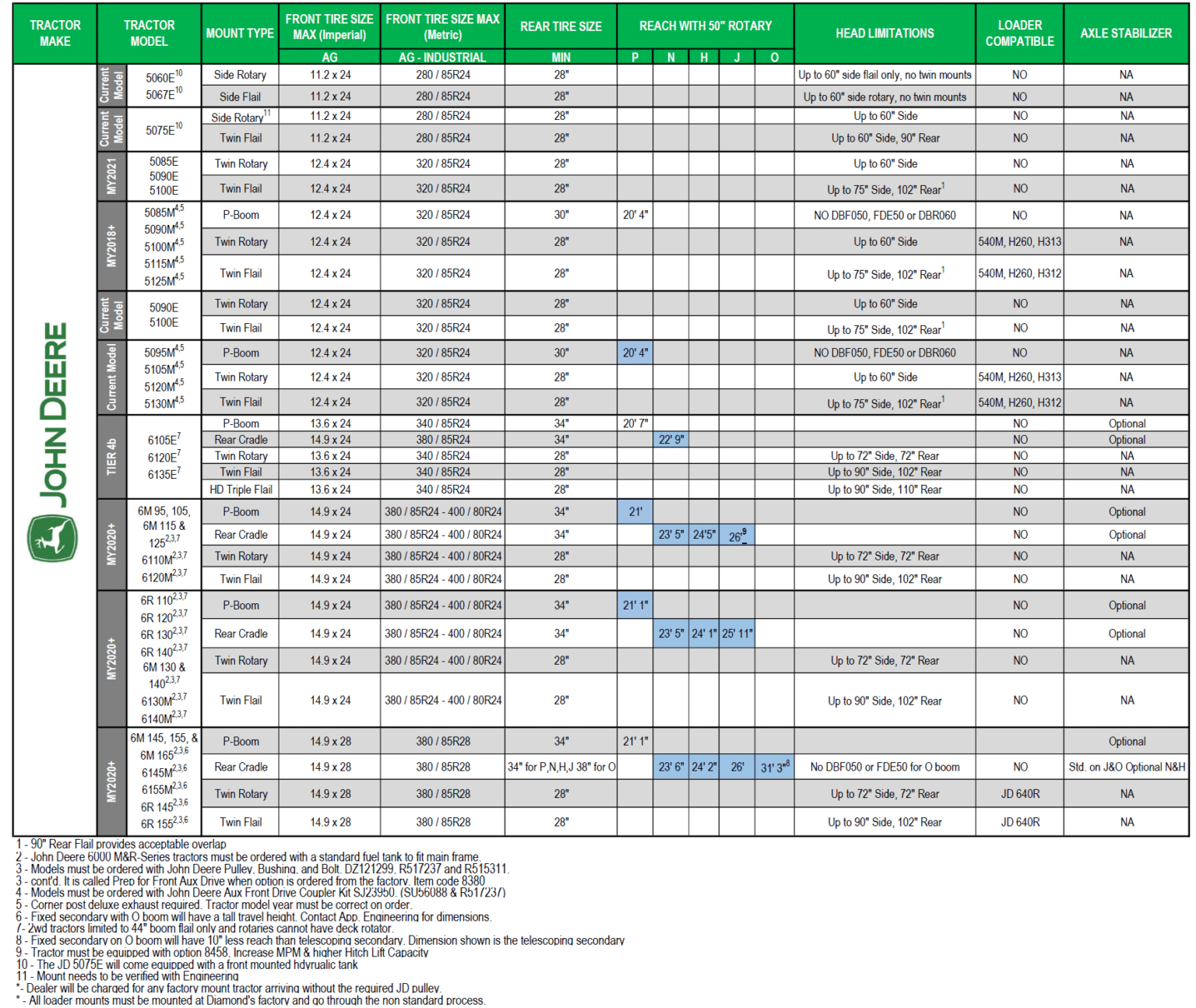

John Deere Compatibility

john deere compatibility chart

Get a Quote

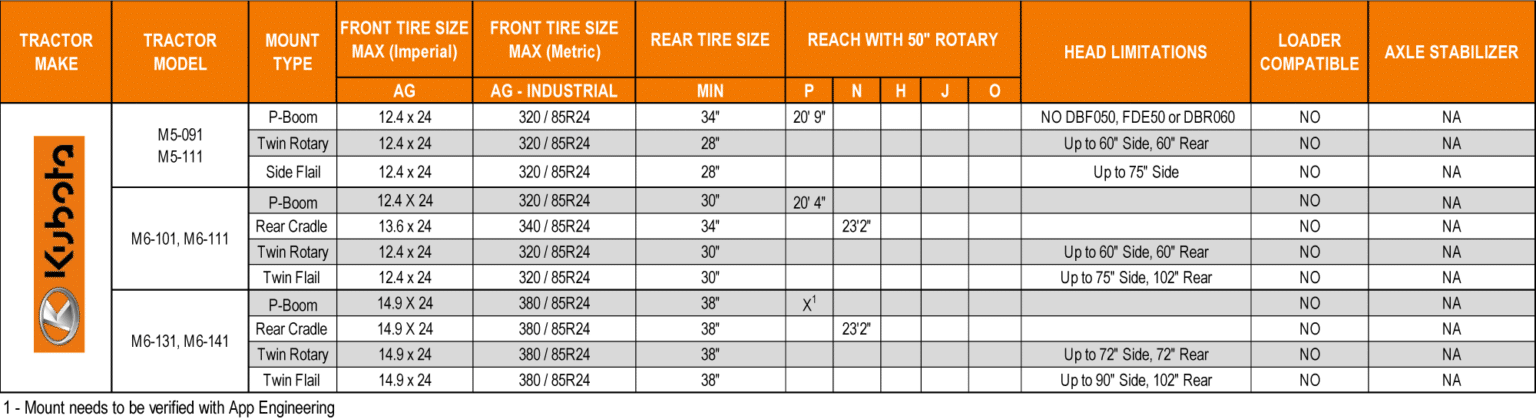

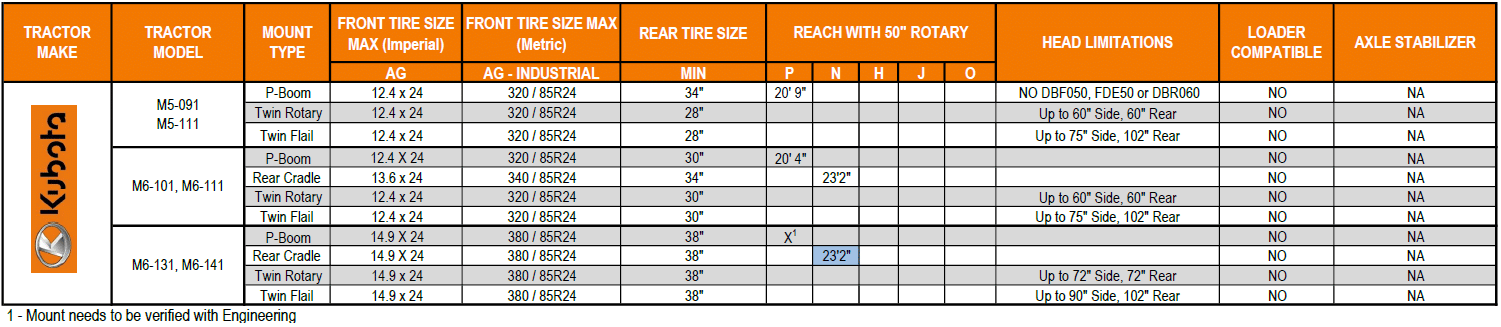

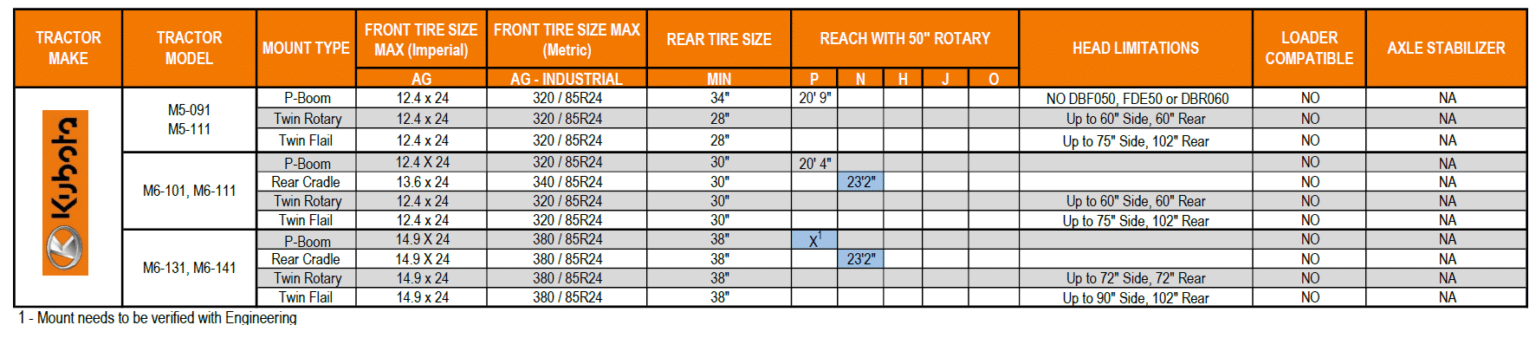

Kubota Compatibility

kubota compatibility chart

Get a Quote

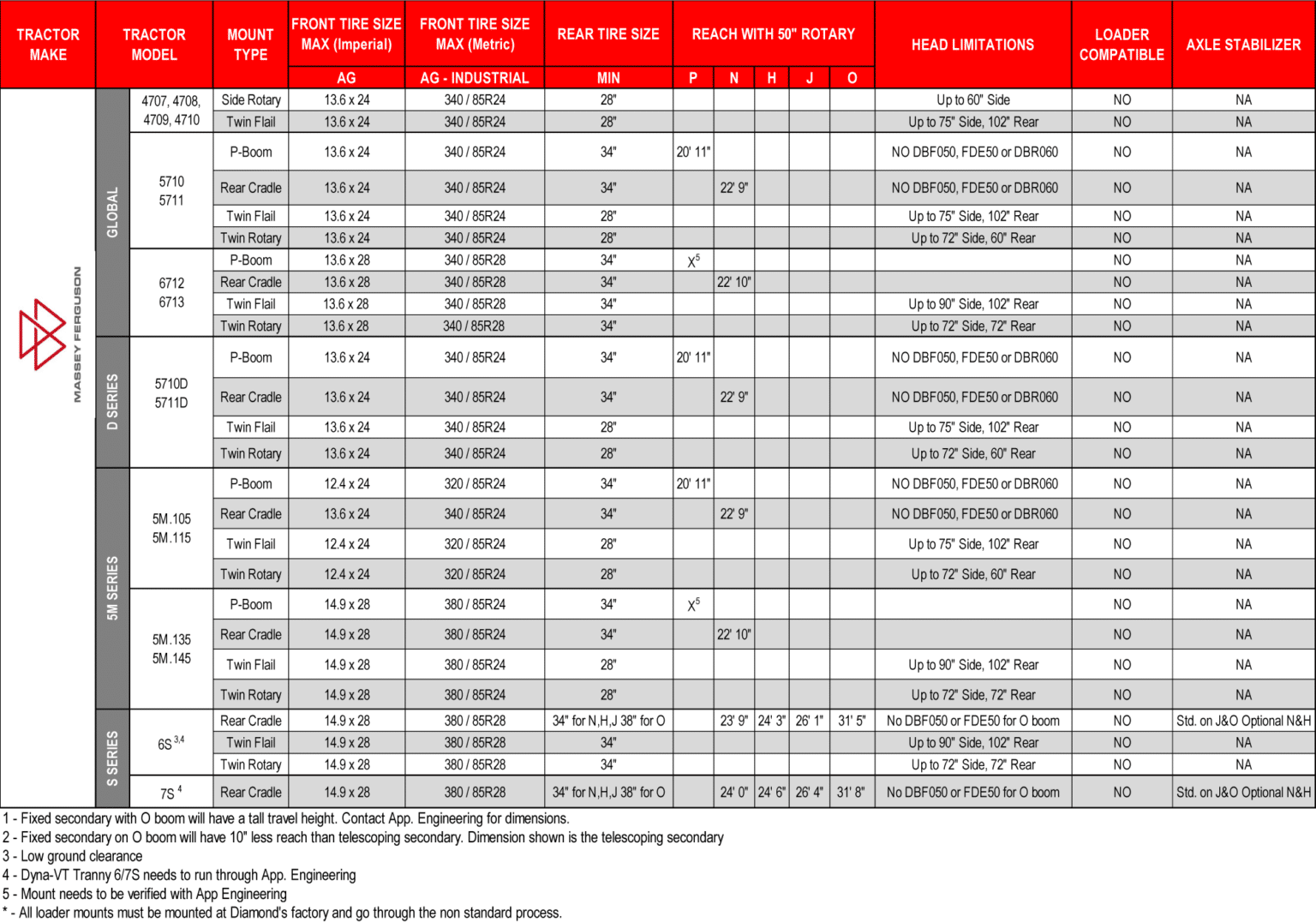

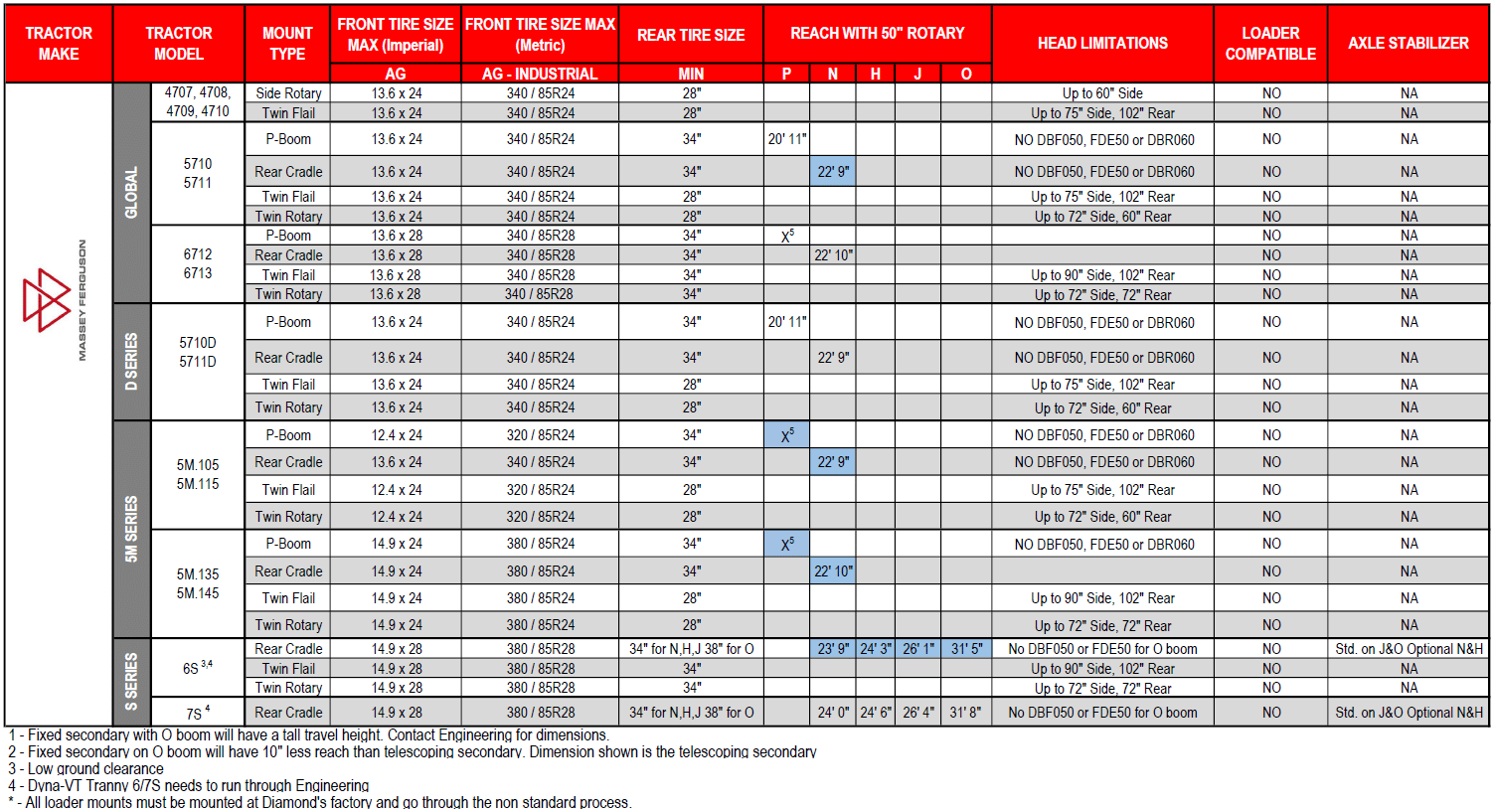

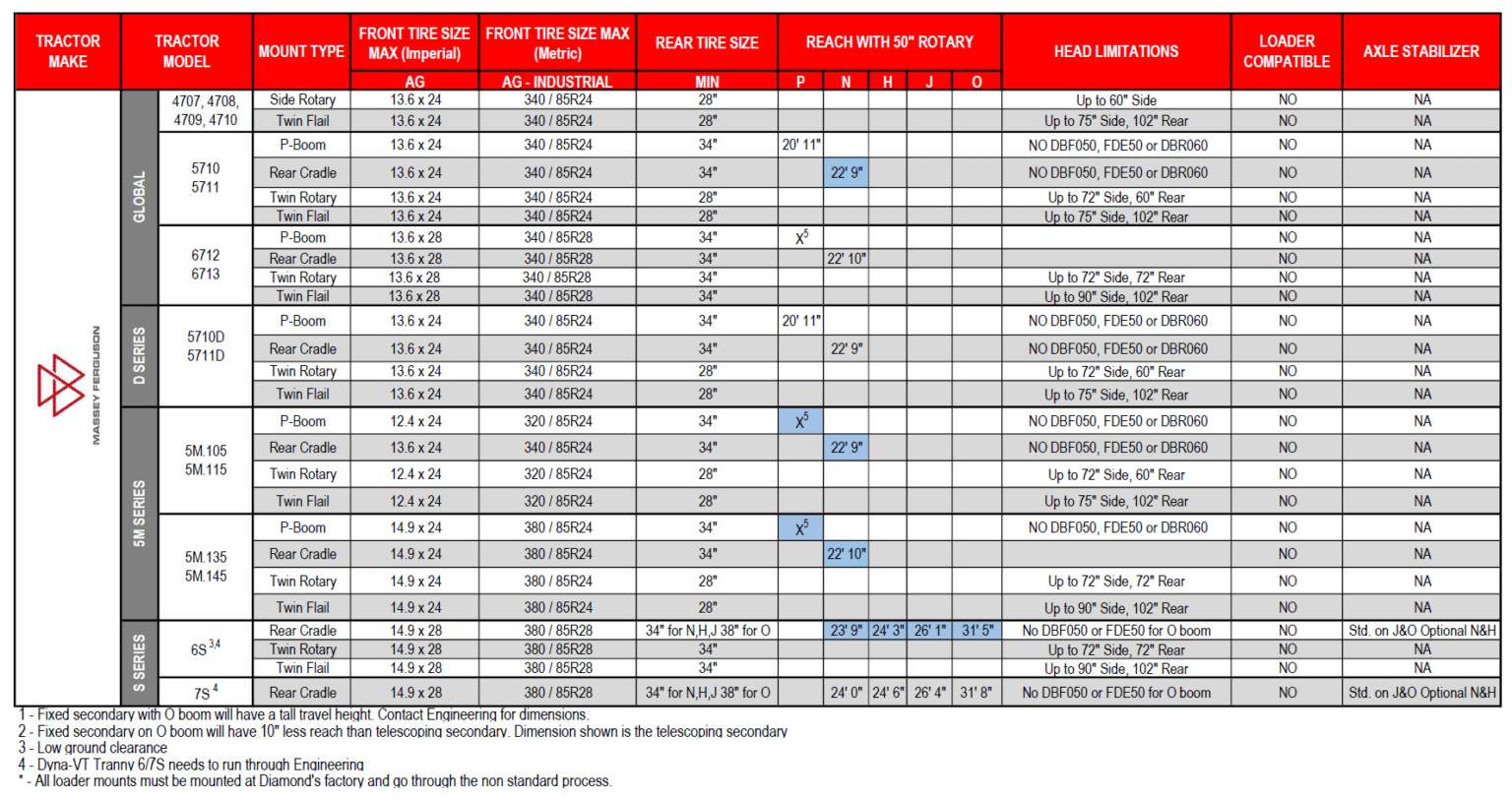

Massey Ferguson Compatibility

massey compatibility chart

Get a Quote

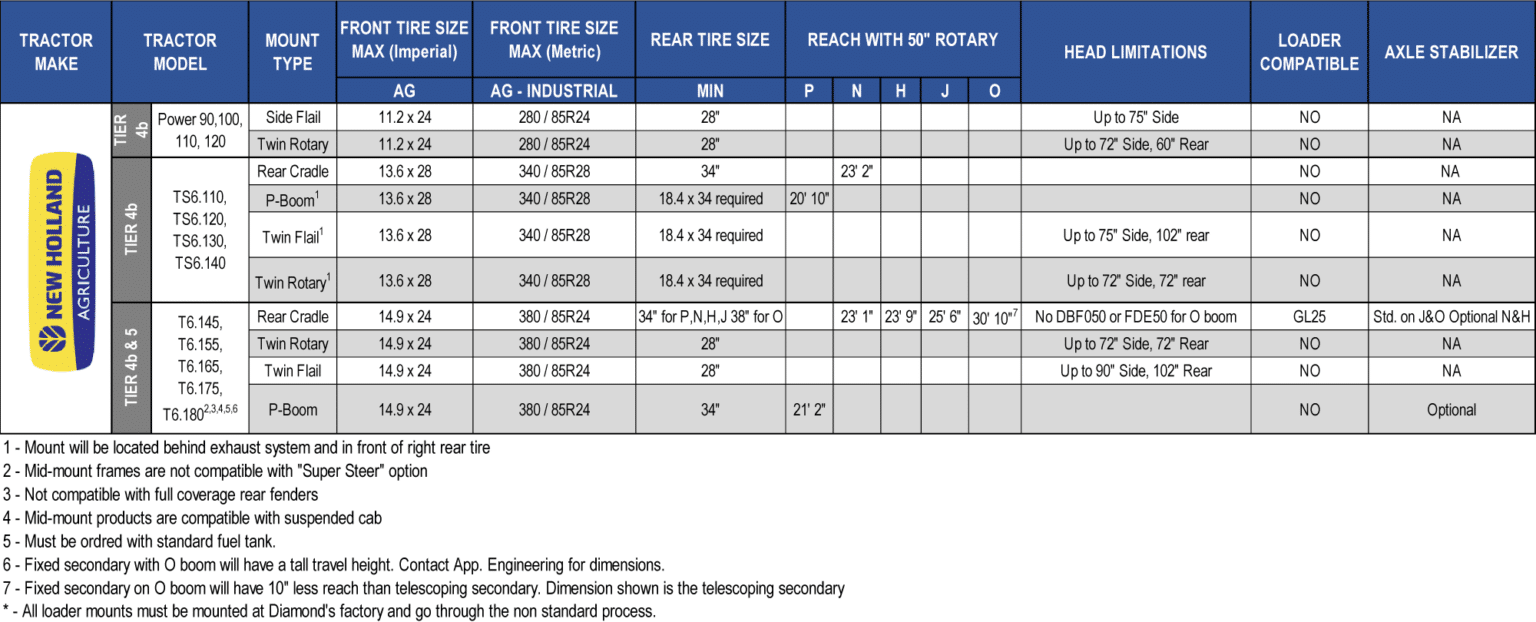

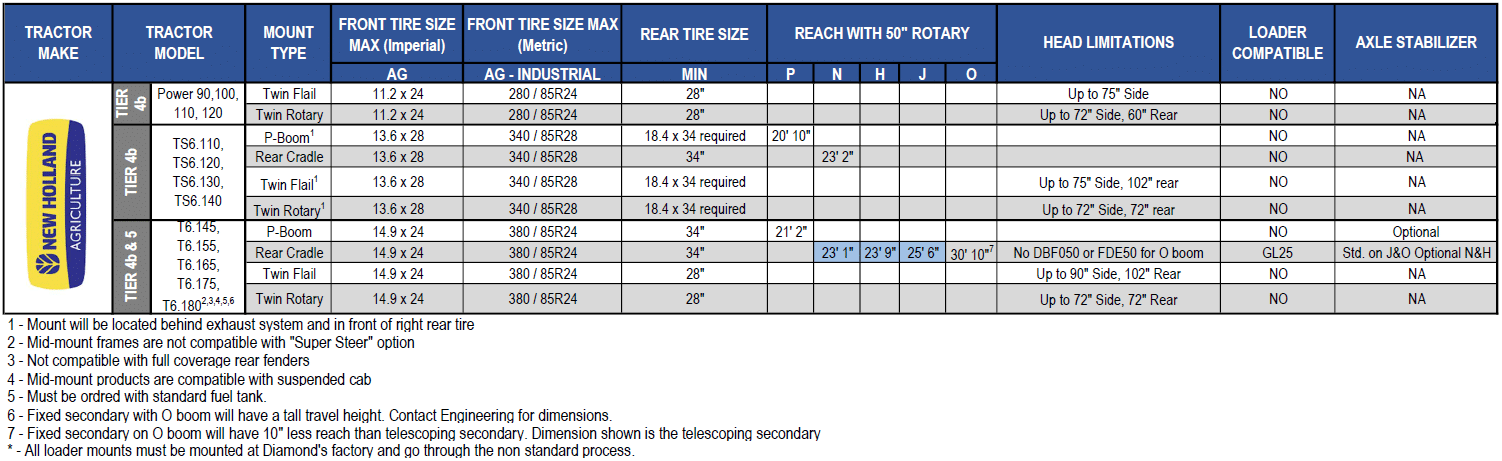

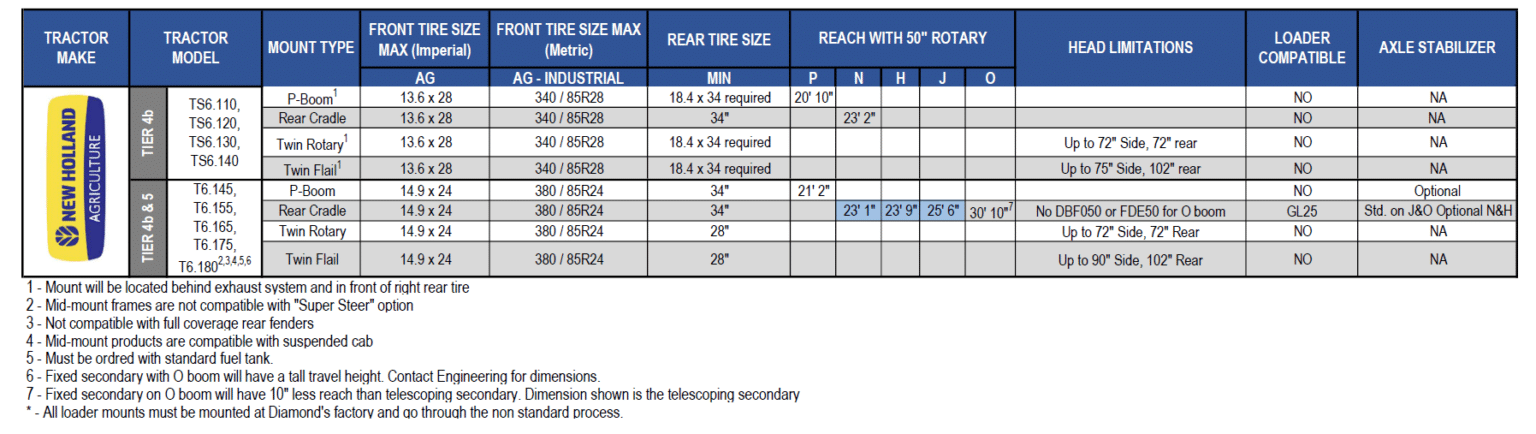

New Holland Compatibility

new holland compatibility chart

Get a Quote

Resources

Not seeing what you’re looking for? Here are some additional resources from Diamond Mowers!

Sell Sheet

Dive Deeper

Parts and Accessories

Keep Your Attachment Running Strong

Maintain and enhance the performance of your Tractor Flail Mower with our extensive selection of parts and accessories.

diamond mowers parts warehouse

Find The Right Attachment

Every job is unique. Our interactive tool takes the guesswork out of finding the right Diamond Mowers attachment for your specific needs.

tractor mounted flail mower rendering

Request a Personalized Quote

Our dedicated team is here to help you find the right solution. Tell us about your project and we’ll tailor a quote to meet your specific needs.
