Tractor Rotary Mower

Cut Fast, Cut Right

Turn miles of overgrown roadside into clean, managed shoulders quickly. The Mid Mount Rotary mower slices through grass and brush, giving you the upper hand in any project.

tractor with diamond attachment

Specifications

cut width icon

Cut Width

60″ | 72″ | 10′ | 11′ | 12′

configuration icon

Configurations

Side | Twin

cut capacity icon

Cut Capacity

Ideal for grass and light brush

Key Features

1 Year product warranty included
Grease required every 500 hours, not every day
All brush cutters come with replaceable skid shoes
Hydraulic systems provide relief protection when encountering obstacles

Smart Hydraulics, Smoother Operation

Our advanced hydraulic system thinks while you work. The cooling fan stays off while the oil comes up to the optimum temperature, then it automatically reverses to clear chaff allowing you to focus on the task at hand.

tractor with side rotary mower

Rotary Mower Configurations

Slices through grass, brush, and small trees

tractor with a brush cutter

Side Rotary Mower

  • Available is 60″ or 72″ cutting widths
  • Cuts up to 4″ material
Tractor Twin Rotary Mower

Twin Rotary Mower

Available configurations

  • 60″ Side with 60″ Rear
  • 72″ Side with 60″ Rear
  • 72″ Side with 72″ Rear
  • Cuts up to 4″ material

Hydraulic Cooler

Stay Cool Under Pressure

Virtually impossible to overheat, the hydraulic cooler comes standard on all Diamond Boom Mower products. It is mounted to a pump and grill guard, including an auxiliary light for enhanced visibility.

tractor hydraulic cooler

Durability

Two-Blade System

  • Blades attach with castle nuts, roll pins, and hex bolts that have 3,000% more load-bearing surface than traditional key style bolts
  • The bolt insert is made of harder steel than the disc
  • When wear occurs the insert can be easily serviced instead of replacing the whole disc

Disc

  • Constructed of 1” thick premium steel with hardened replaceable inserts
  • Easy blade maintenance
Tractor rotary mower blade and disc

Configurations

Side Rotary Features

  • Hydraulically driven
  • Available in 60″ or 72″ cutting widths

Twin Rotary

  • Hydraulically driven side and rear
  • Cat II 3-point hitch for rear
  • Covers large areas up to 12 ft.
  • Highly effective
  • Offset option ensures overlap with side rotary
renders of tractors showing the available cutting configurations

In the Field

Achieve clean, consistent cuts with a rotary mower featuring powerful cutting heads and durable construction.

  • Roadside vegetation management

Flail Mower vs Rotary Mower – Which Is Best for Your Job?

Tractor Twin Rotary Mower

Check Compatibility

Select the make of your carrier to view the corresponding compatibility chart.

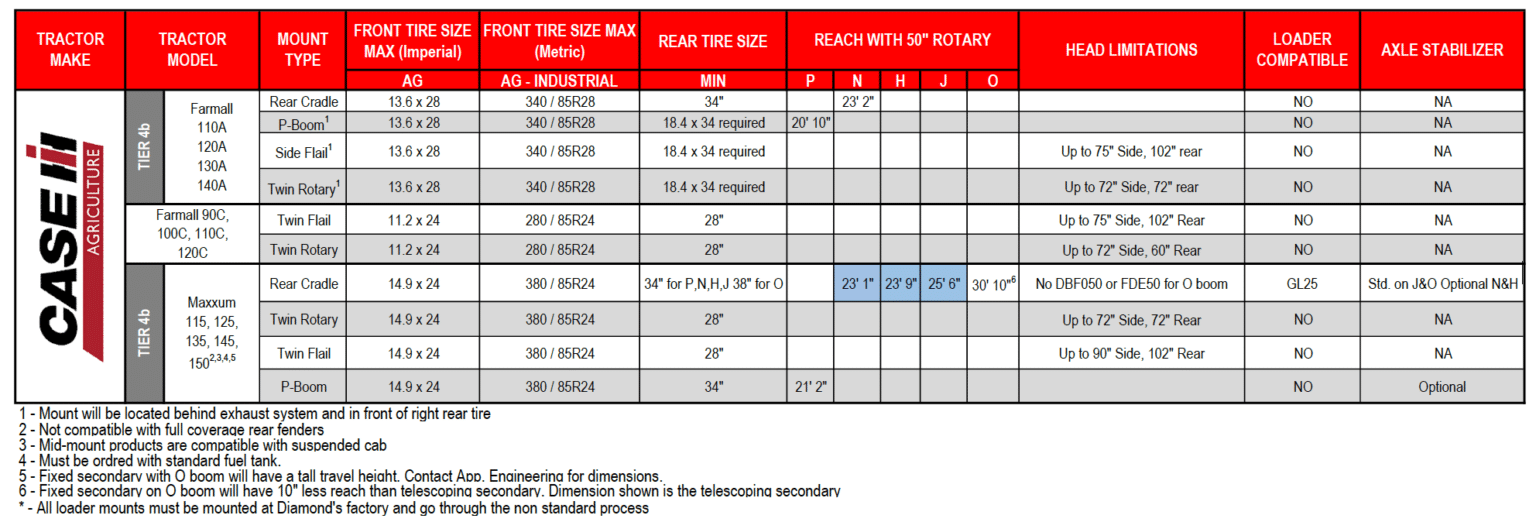

Case IH Compatibility

case compatibility chart

Get a Quote

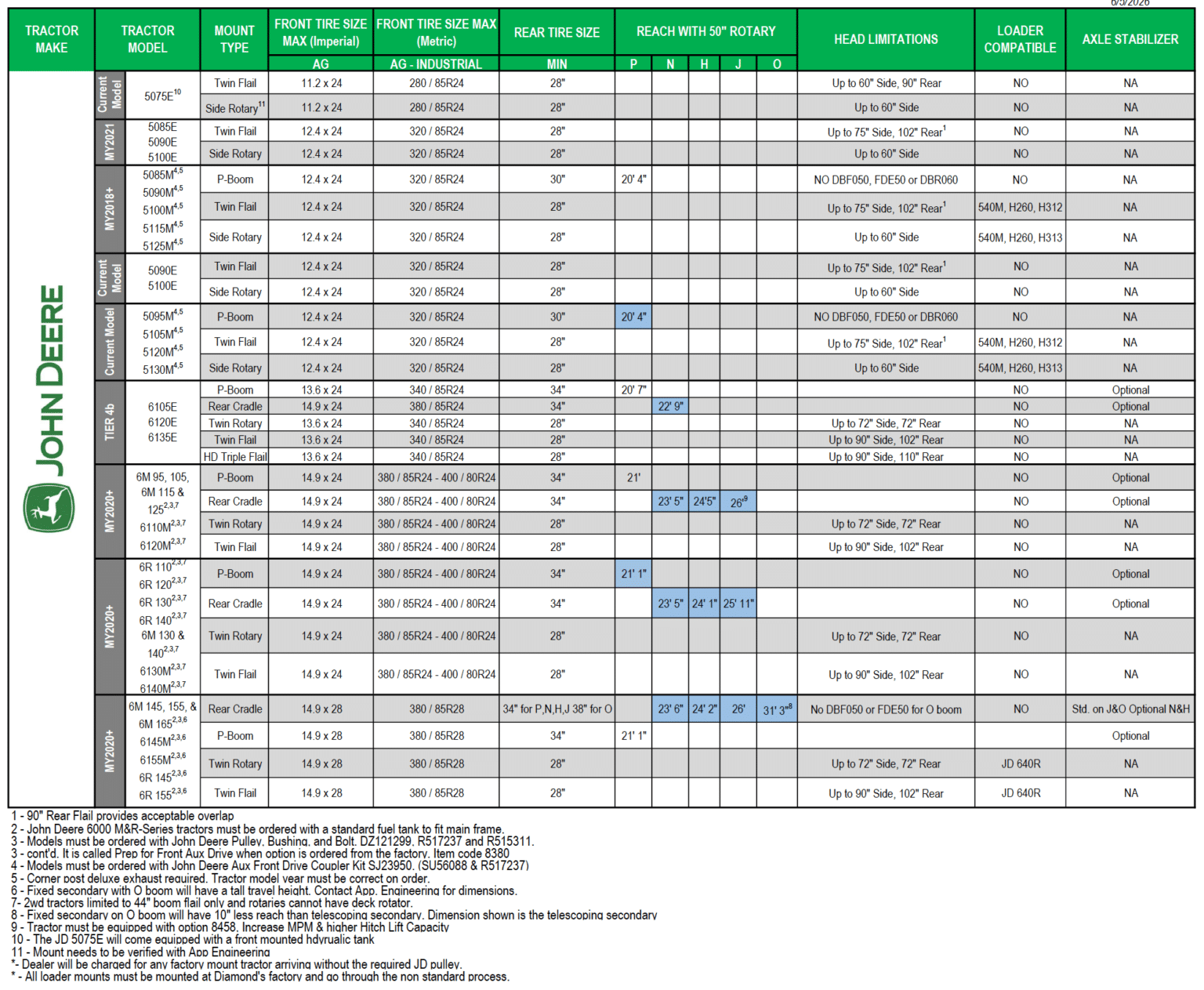

John Deere Compatibility

john deere compatibility chart

Get a Quote

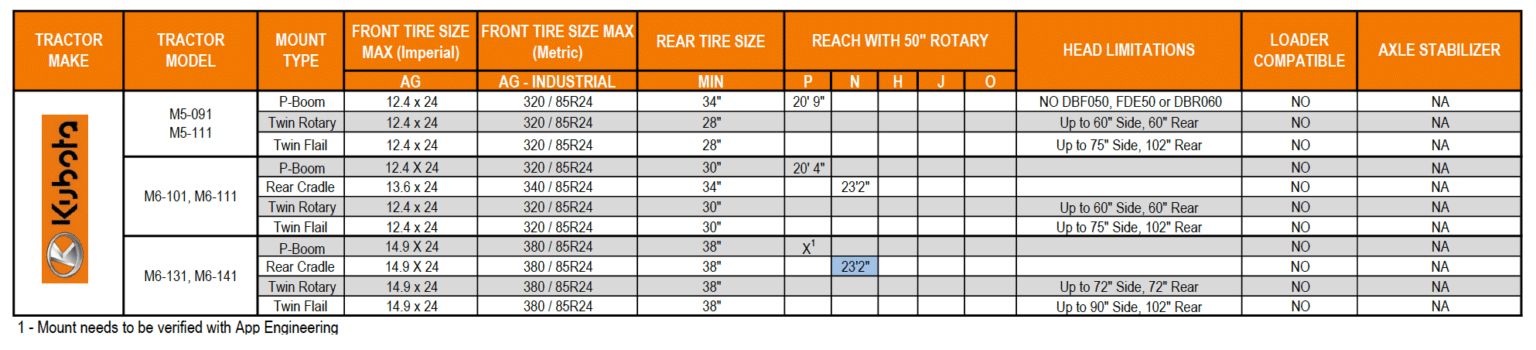

Kubota Compatibility

kubota compatibility chart

Get a Quote

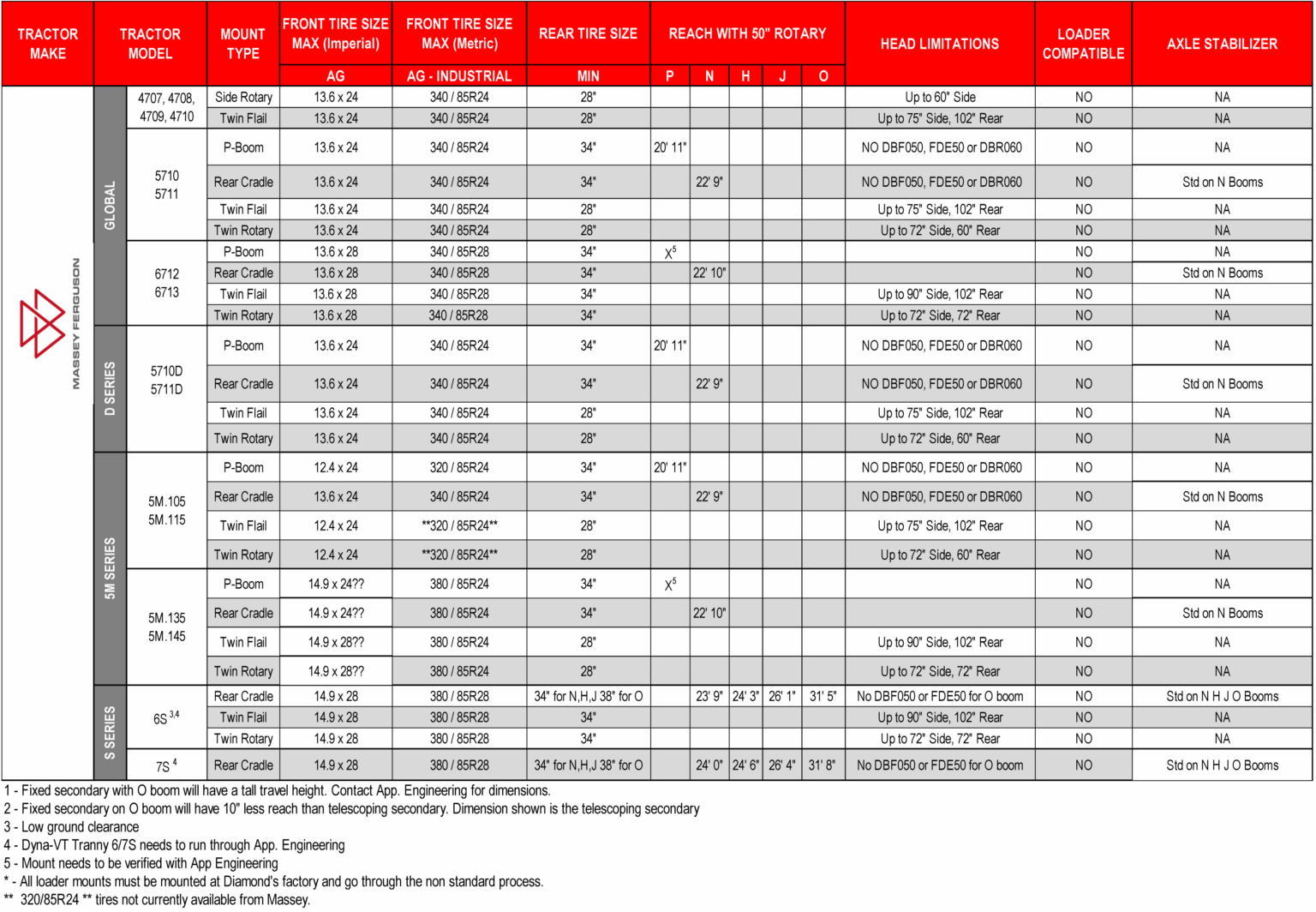

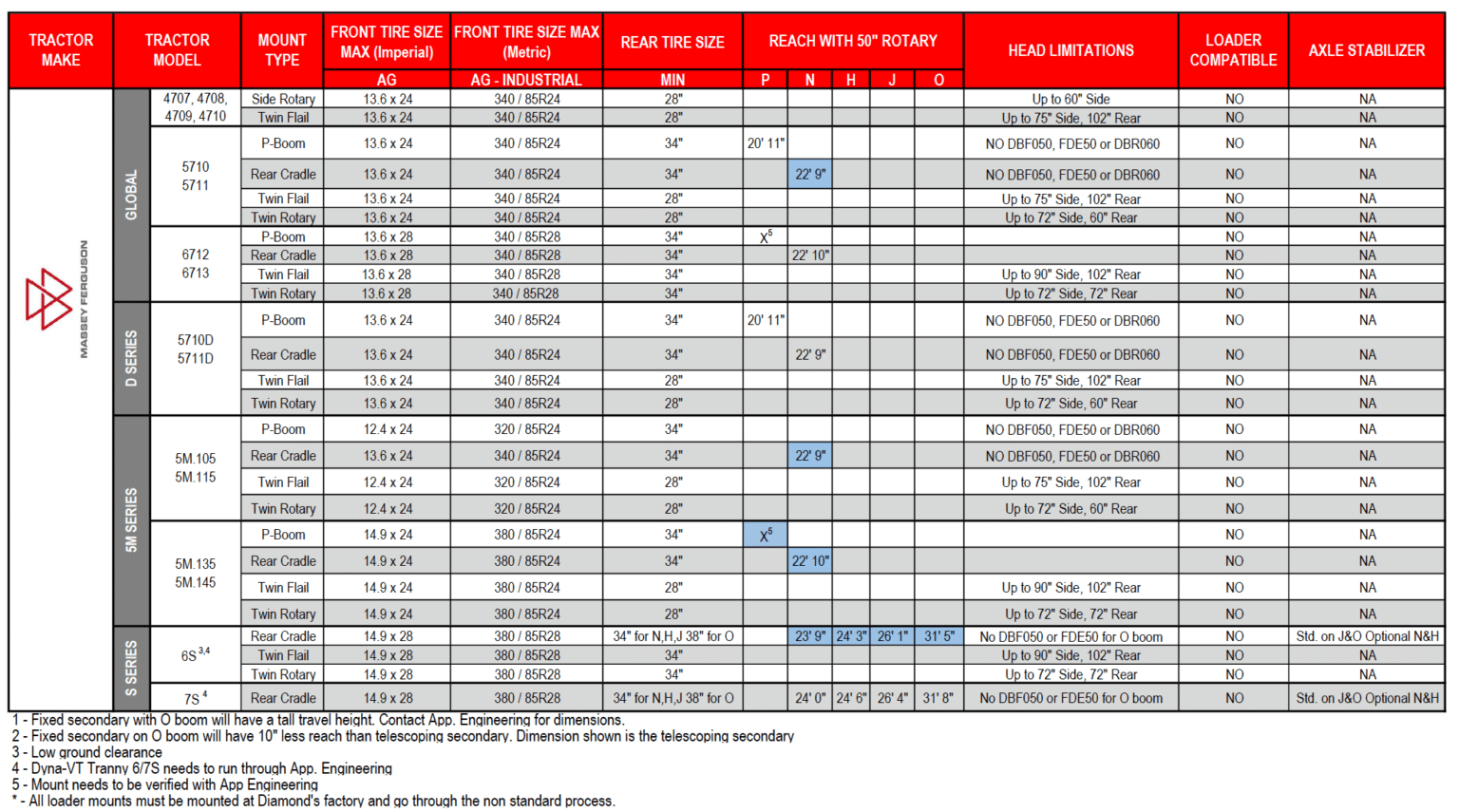

Massey Ferguson Compatibility

massey compatibility chart

Get a Quote

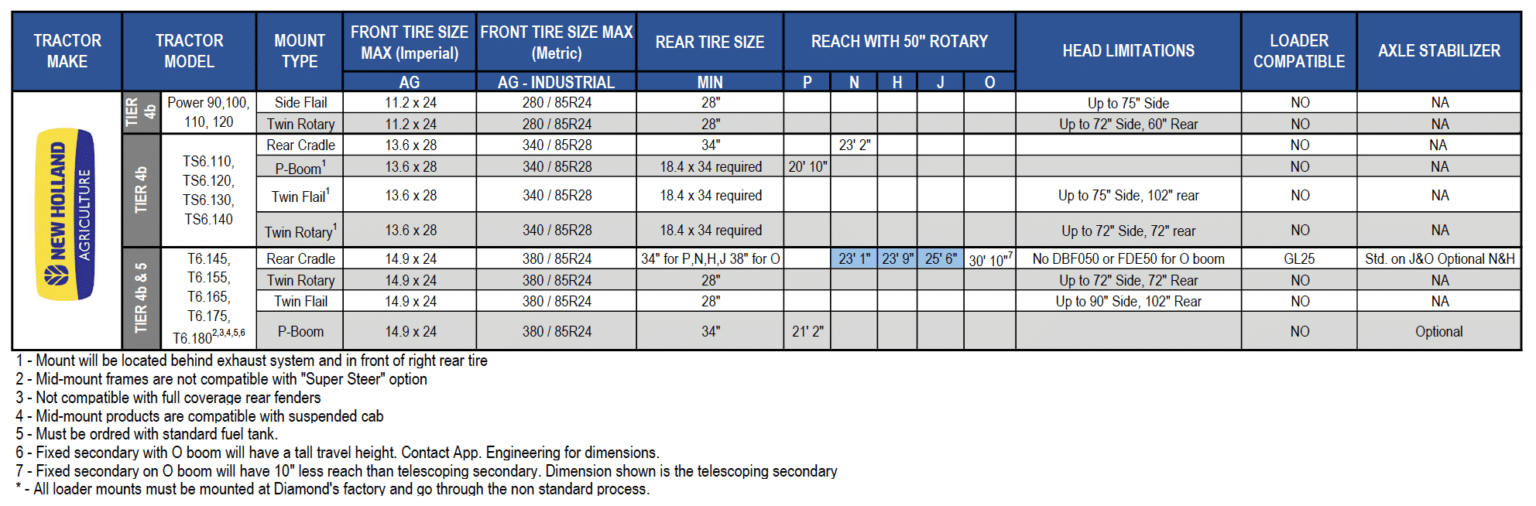

New Holland Compatibility

new holland compatibility chart

Get a Quote

Resources

Not seeing what you’re looking for? Here are some additional resources from Diamond Mowers!

Sell Sheet

Dive Deeper

Parts and Accessories

Keep Your Attachment Running Strong

Maintain and enhance the performance of your Tractor Rotary Mower with our extensive selection of parts and accessories.

diamond mowers parts warehouse

Find The Right Attachment

Every job is unique. Our interactive tool takes the guesswork out of finding the right Diamond Mowers attachment for your specific needs.

diamond mowers attachment render

Request a Personalized Quote

Our dedicated team is here to help you find the right solution. Tell us about your project and we’ll tailor a quote to meet your specific needs.
