Tractor Boom Mower Mid-Mount

Reach Higher, Stress Less

Stretch further than you thought possible with the Mid-Mount Boom Mower. A wide variety of heads mow, mulch and cut their way through your most demanding roadside vegetation management projects.

tractor with diamond attachment

SPECIFICATIONS

boom arm length icon

Available Boom Lengths

21′ | 22′ | 23′ | 25′ | 30′

configuration icon

Configurations

Drum Mulcher | Rotary Mower | Flail Mower | Disc Mulcher | Saw Blade | Ditcher

Key Features

1 year product warranty included
The rear cradle boom folds to the rear for clearance and visibility when in transport
Integrated boom controls provide single-handed control and enhanced safety
Available boom lengths 21-FT | 22-FT | 23-FT | 25-FT | 30-FT
rear cradle boom rotary mower on a kubota m6-111

Adaptive Tech for Tougher Jobs

Meet the brain behind the brawn: it thinks while you work, matching power to the task at hand.

tractor boom brush cutter

What is a tractor boom

Rear Cradle Boom

Tractor booms enable operators to clear ordinarily hard-to-reach trees and brush and allow operators to perform a wide range of functions like sawing and mulching. These booms and their attachments will add the versatility you need for everyday operations.

  • The Rear Cradle Boom comes in a variety of lengths to meet application needs and tractor capabilities: 21-FT | 22-FT | 23-FT | 25-FT | 30-FT
  • The Rear Cradle Boom folds to the rear for clearance and visibility when in transport.
  • The method used to attach the Rear Cradle Boom to your tractor will depend primarily on your tractor’s make and model.
  • We also have 3-PT Boom Tractor Attachments if you are looking to add versatility to a tractor using the 3-PT Hitch.
tractor with rear cradle boom

Boom Cutting Heads

Versatile Cutting Solutions For Every Job

diamond mowers attachment render

Drum Mulcher DC Pro X

Cut, process, and clear trees and brush

  • 30″ | 50″ Cutting widths
  • Cuts up to 8″ material
  • Three cutting teeth options
  • Optimized Infeed System
  • Variable Displacement Piston Motor
  • Severe Duty Rated Bearings
  • Removable Bolt-on Door
  • Abrasion Resistant AR 400 Liner
diamond mowers attachment render

Rotary Mower

Shreds thick brush and trees

  • 50″ | 60″ Cutting widths
  • Cuts up to 4″ material continuously and 8″ material intermittently
  • Tri-Hex disc includes 5-year warranty
  • Oil bath spindle 260% stronger than greaseable spindle
diamond mowers attachments

Flail Mower

Perfect for removing grass and brush

  • 44″ | 50″ ” Cutting widths cut up to 3″ material continuously and up to 6″ material
  • 63″ Cutting width cuts grass continuously and up to 2″ material
  • Ideal for a cleaner, more finished look
render of diamond mowers attachment

Disc Mulcher

Ideal for mulching and cutting purposes

  • 36″ Cutting width
  • Cuts up to 8″ material and mulches up to 5″ material
  • Replaceable, hardened steel teeth
diamond mowers attachment render

Saw Blade

Saws tree limbs with ease

  • 48″ Cutting width
  • Cuts up to 10″ material
  • Slices material with replaceable carbide teeth
  • Delivers clean, finished look
tractor mid mount ditcher attachment

Ditcher

Clears culverts and ditches

  • 22″ Cutting width
  • Uses three, 3/8″ thick replaceable knives
  • Equipped with hydraulic chute to direct exhausted material

Stay Cool Under Pressure

Hydraulic Cooler

Virtually impossible to overheat, the hydraulic cooler comes standard on all Diamond boom mower products. It is mounted to a pump & grill guard and includes an auxiliary light for enhanced visibility.

tractor hydraulic cooler

Integrated Boom Control System

IBC System

Meet the Diamond Integrated Boom Control system, equipped on all mid-mount booms. The IBC system offers single-hand control, enhanced safety features, and an optional industry-leading Smart Screen for increased capability.

Integrated Boom Control System - Diamond Mowers

IBC Features and Options

IBC-Joystick

IBC Joystick

  • Built into the custom armrest, attaching to your tractor seat
  • All controls at your fingertips
  • Enhanced safety with an emergency stop button
IBC Smart Screen

IBC Smart Screen

  •  Available as an upgrade option
  • Customizable boom speeds and joystick sensitivity
  • Tracks and feeds data back to you
  • Detailed diagnostics for troubleshooting in the field
IBC Armrest

Custom Armrest

  • Integrates with the existing tractor seat and replaces the OEM armrest *Not compatible with certain tractor models
  • Includes 5 different adjustment locations
  • The wrist adjustment allows you to position the joystick at the correct angle for your operating style

Additional Features

actuator

HYDRAULIC ACTUATOR

  • Provides breakaway protection in both forward and reverse
  • Fully enclosed with fewer moving parts for easy maintenance
  • Larger range of motion than traditional swing cylinder
tr shatter resistant window

SHATTER RESISTANT WINDOW

  • Provides greater cab protection
  • Standard for right-hand door/window
Tractor fender tank

FENDER HYDRAULIC TANK

  • Placed in a protected location to prevent possible damage
  • Provides enhanced visibility
  • Allows access to 3-PT hitch

Available Options for Boom Attachments

Tractor Axle Stabilizer

AXLE STABILIZER

  • Increases stability by eliminating oscillation on front axle
  • Standard on 25-ft and longer booms
  • Optional on shorter length booms
HYDRAULIC TRAP DOOR

HYDRAULIC TRAP DOOR

  • Available for 50″ and 60″ Rotary Mowers and 50″ Flail Mowers
  • Exposes blade to easily feed material

Q-LINK

Maximize Your Existing Mid-mount Tractors

Diamond’s Q-Link allows operators to further maximize their existing mid-mount tractors for other jobs such as sweeping or snow blowing outside of mowing season.

Benefits of the Q-link include:

  • Ability to install and remove front pump assembly, allowing the 3-PT hitch and
    PTO to be used
  • Keeps the rear 3-PT hitch and PTO available for other equipment
  • Equipped with stands, hydraulic quick couplers and weather proof caps for all hydraulic and electrical connections – all for easy storage, quick installation and quick removal!
  • Allows the operator to turn the hydraulic pump on and off, using less fuel
Tractor 3-pt Q-Link

In the Field

Tractor booms enable operators to clear ordinarily hard-to-reach trees and brush and allow operators to perform a wide range of functions like sawing and mulching. These booms and their attachments will add the versatility you need for everyday operations.

  • Roadside maintenance
  • Ditch and fence line clearing
  • Right-of-way management
  • Trail maintenance
  • Snowmobile trails clearing and maintenance

Learn more about attachments for roadside maintenance.

We offer several articles and stories from those using our equipment in the file, like Tractor Brushing & Mowing in Menomonie, WI.

two guys standing in front of a tractor with a brush cutter

Check Compatibility

Select the make of your carrier to view the corresponding compatibility chart.

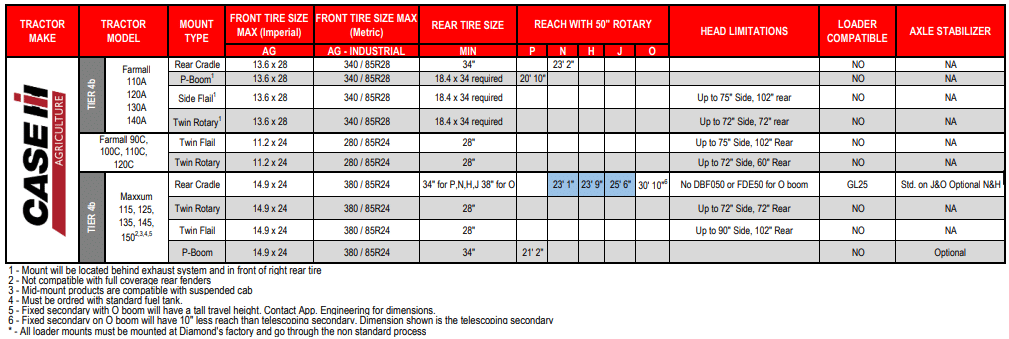

Case IH Compatibility

case compatibility chart

Get a Quote

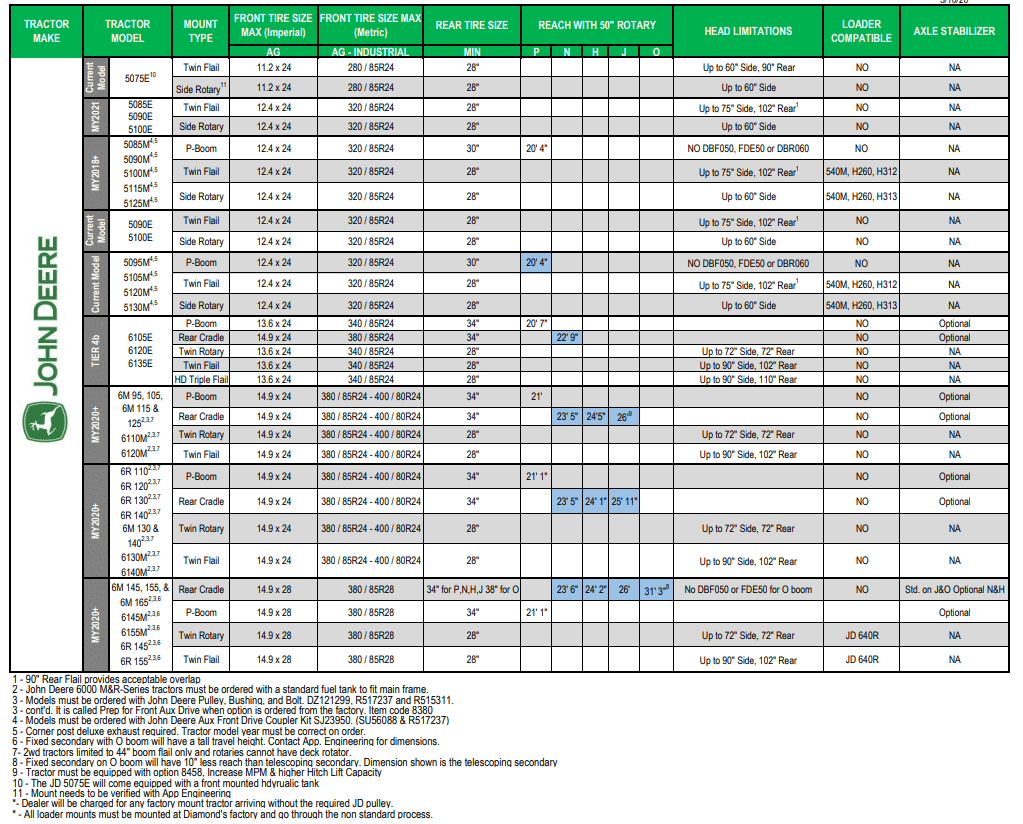

John Deere Compatibility

john deere compatibility chart

Get a Quote

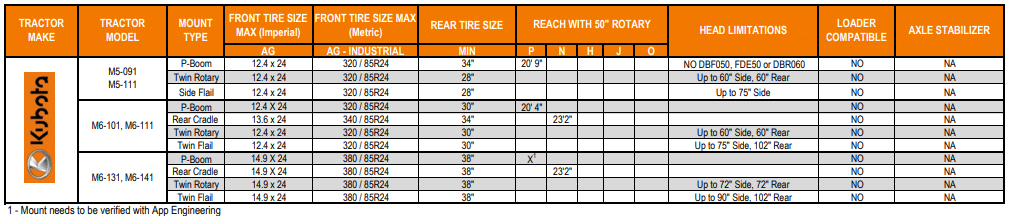

Kubota Compatibility

kubota compatibility chart

Get a Quote

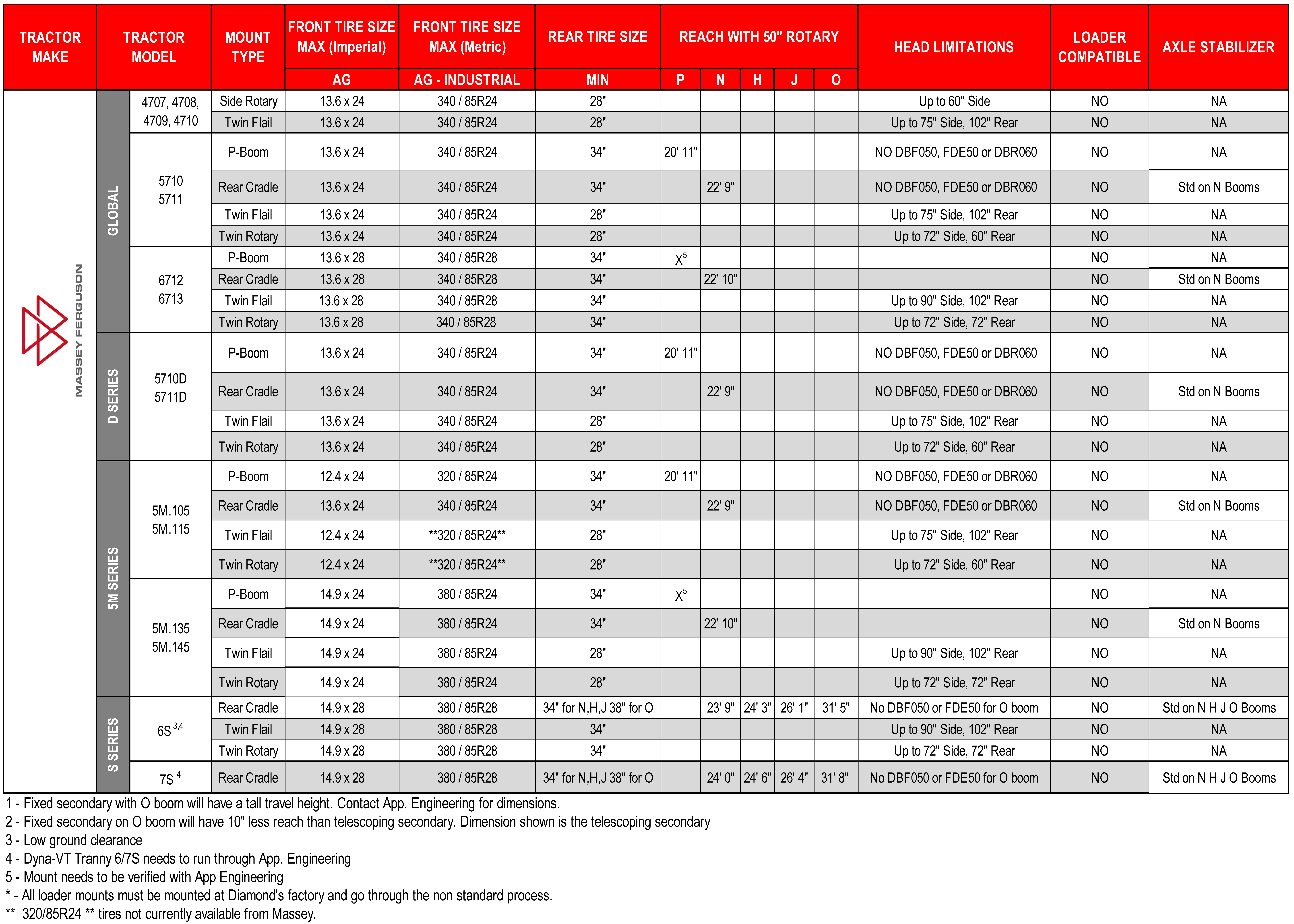

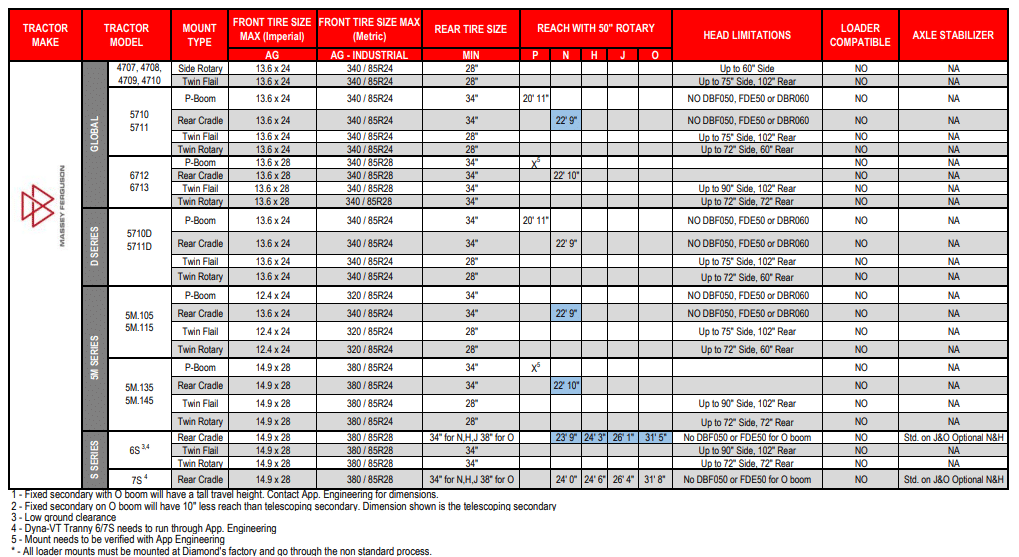

Massey Ferguson Compatibility

massey compatibility chart

Get a Quote

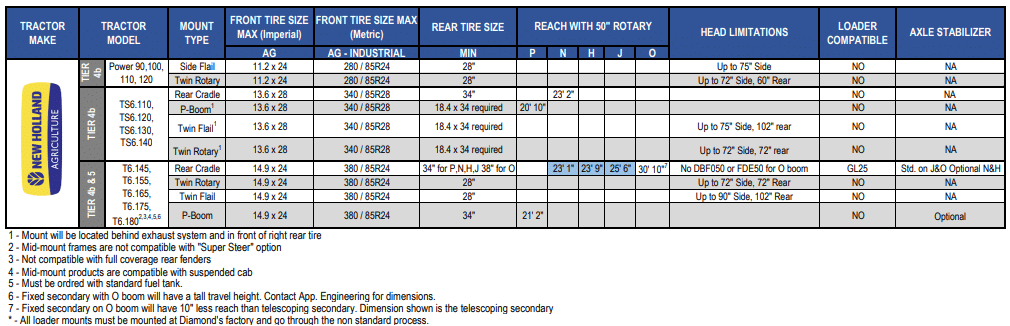

New Holland Compatibility

new holland compatibility chart

Get a Quote
