Tractor Boom Mower Mid-Mount

Next-gen Boom Next-level Performance

This is durability with direction. Safety with simplicity. A boom built not just to meet expectations, but to stand shoulder to shoulder with the crews that demand more and deserve the best. With Diamond’s new Mid-Mount Boom Mower, you get more than just an industry-leading attachment; you get a tool designed for the dedicated professionals who serve our communities.

Get A Quote Check Compatibility

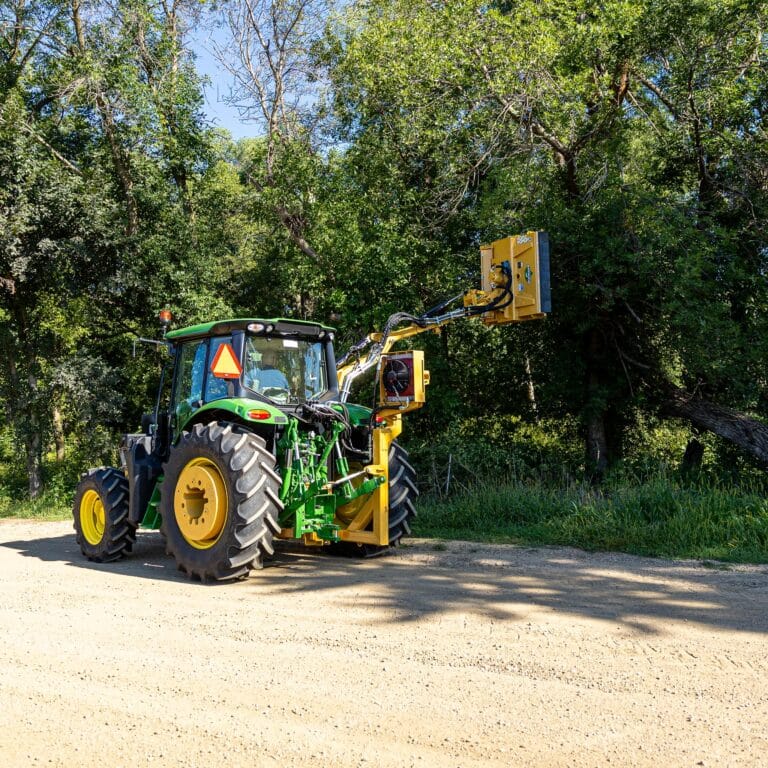

Tractor with a boom rotary mower attached

Specifications

Available Boom Lengths

21′ | 22′ | 23′ | 25′ | 30′

Configurations

Key Features

Full 2-year product warranty excluding boom attachments

The redesigned wheel weight reduces tractor width by up to 10″

Integrated boom controls provide single-handed control and enhanced safety

Available boom lengths 21-FT | 22-FT | 23-FT | 25-FT | 30-FT

OPTIONAL: Hydraulic Pump Clutch

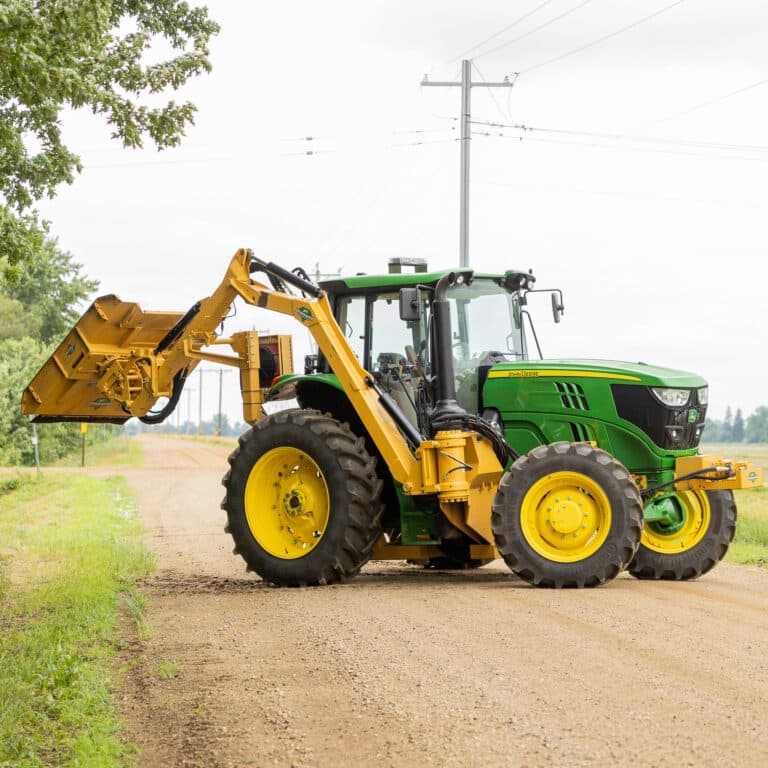

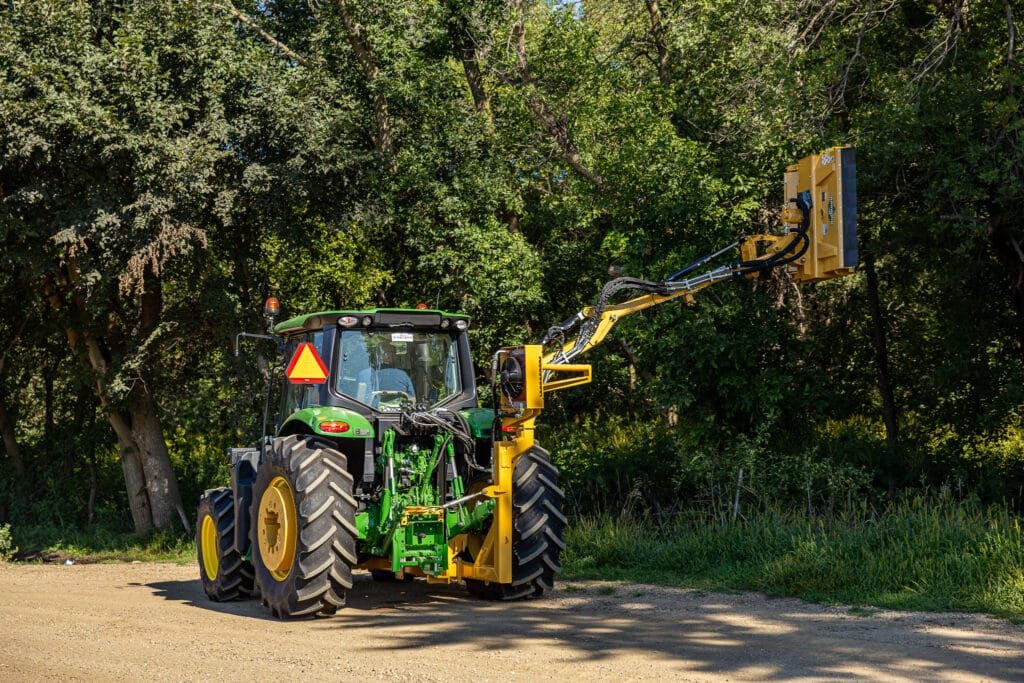

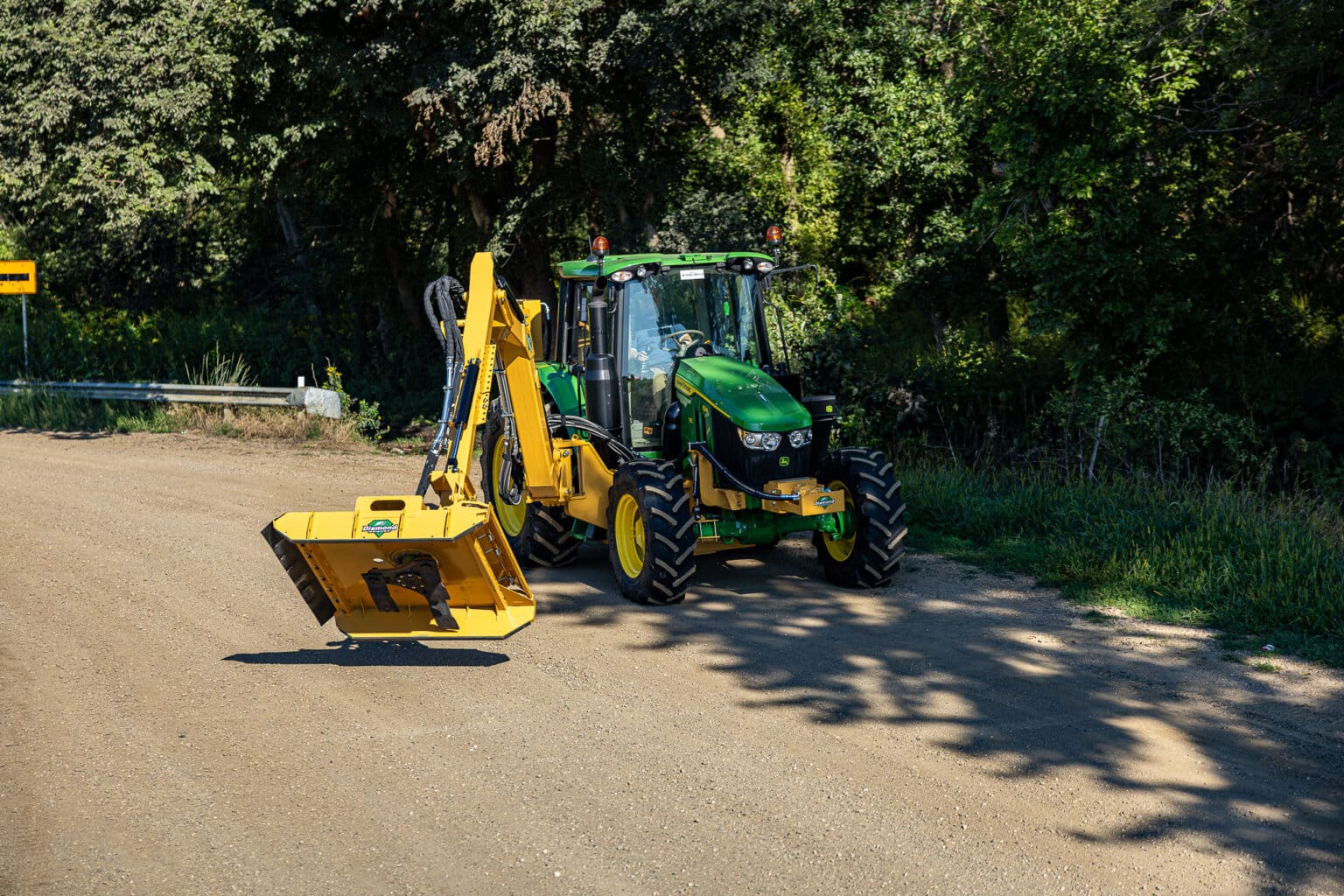

tractor with boom attachment in the road

The redesigned mid-mount boom is available on select John Deere tractor models. More makes and models are coming soon, contact us today for more details.

Looking For The Previous Mid-Mount Boom?

Click the link below for more information!

View Previous Product Version Here

See the Tractor Mid-Mount Boom Mower in Action

See the Tractor Boom Mower Mid-Mount in action and witness how it tackles real-world challenges with ease.

Industry-Leading Control & Diagnostics

Robust Control At Your Fingertips

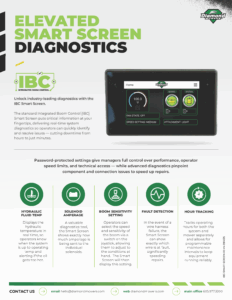

The IBC system offers single-hand control and the upgraded standard Smart Screen delivers real-time system diagnostics. Receive instant feedback on machine status, including error messages and line rate use, helping technicians identify and resolve issues in minutes, instead of hours.

Password-protected controls allow managers to lock down performance settings, limit speed for newer operators, and restrict technical access to trained technicians.
Unprecedented diagnostic capabilities reduce repair time by showing technicians specific issues.

Product Compatibility

IBC Features and Options

IBC Joystick

All controls at your fingertips
Built into the custom armrest, attaching to your tractor seat
Rocker switch allows for quick adjustment of the boom speed
Enhanced safety with an emergency stop button

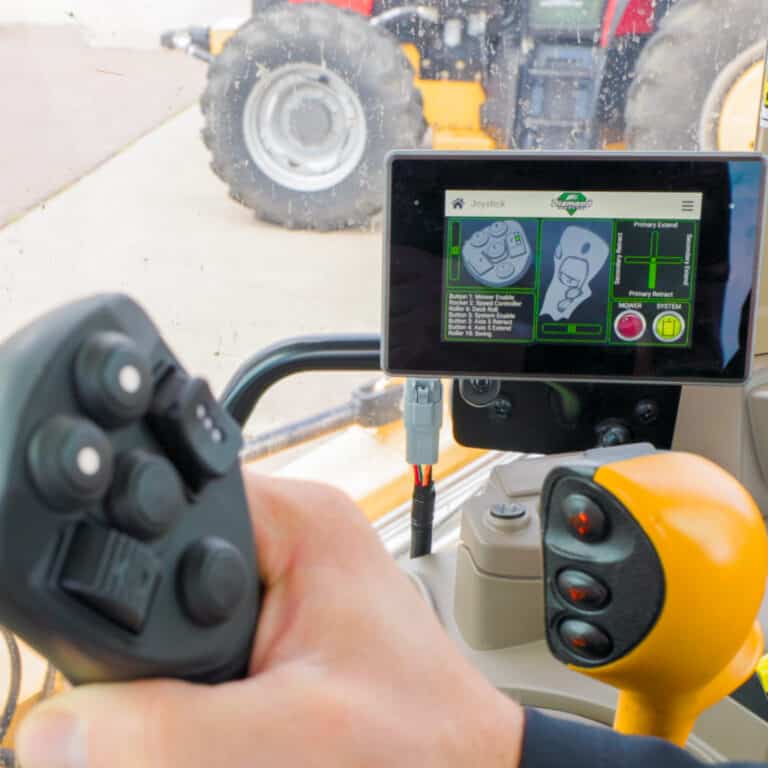

IBC Smart Screen

Standard on all rear cradle booms
Tracks and feeds data back to you
Detailed diagnostics and error messages for troubleshooting in the field

Custom Armrest

Integrates with the existing tractor seat and replaces the OEM armrest *Not compatible with certain tractor models
Includes 5 different adjustment locations
The wrist adjustment allows you to position the joystick at the correct angle for your operating style

What is a Tractor Boom

Rear Cradle Boom

Tractor booms enable operators to clear ordinarily hard-to-reach trees and brush and allow operators to perform a wide range of functions like sawing and mulching. These booms and their attachments will add the versatility you need for everyday operations.

The Rear Cradle Boom comes in a variety of lengths to meet application needs and tractor capabilities: 21-FT | 22-FT | 23-FT | 25-FT | 30-FT
The Rear Cradle Boom folds to the rear for clearance and visibility when in transport.
The method used to attach the Rear Cradle Boom to your tractor will depend primarily on your tractor’s make and model.
We also have 3-PT Boom Tractor Attachments if you are looking to add versatility to a tractor using the 3-PT Hitch.
Mid-Mount updates are for select John Deere models only. Give us a call for updates on other models or request a quote below.

Get A Quote

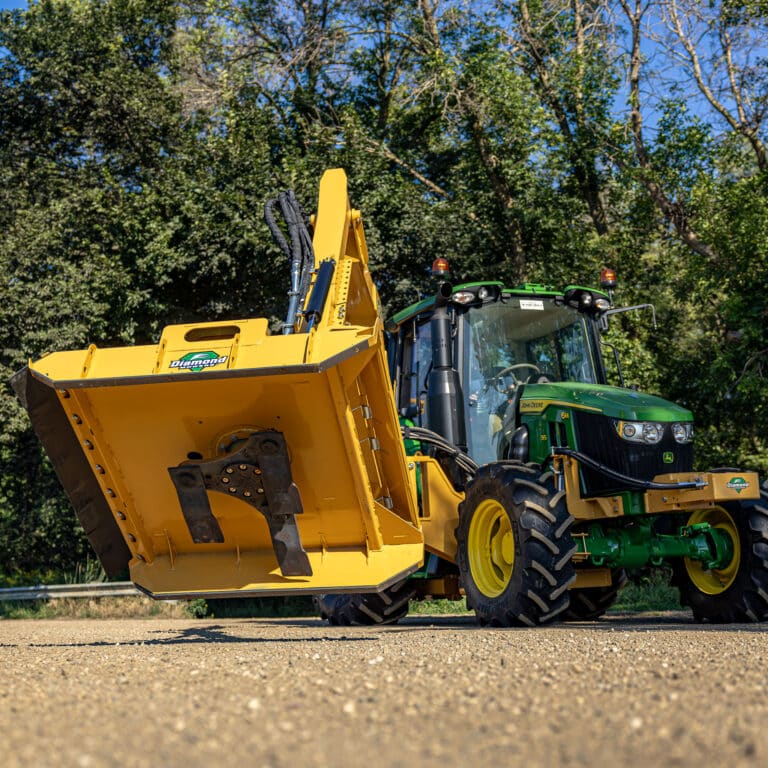

tractor with rear cradle boom rotary mower attached

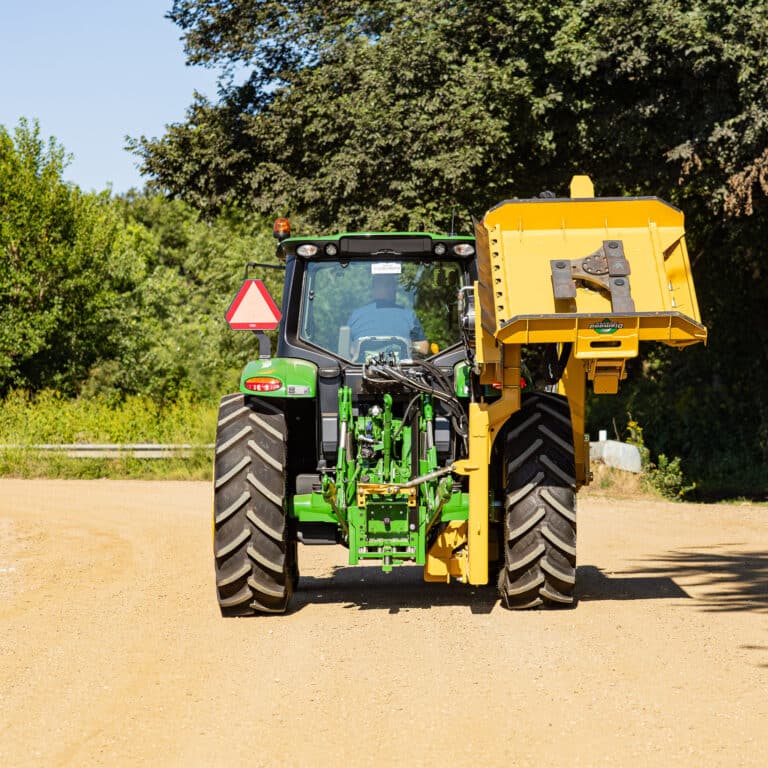

Narrower Profile = Safer Roadside Operation

Easier Transport & Tighter Control

Counterweights have been redesigned to limit overall width while maintaining exceptional stability. The freed-up fender area reduces the overall width, improving safety when operating near traffic or navigating tight roadside environments.

rear view of a tractor with a mid mount rotary mower attached

PREMIUM UPGRADES

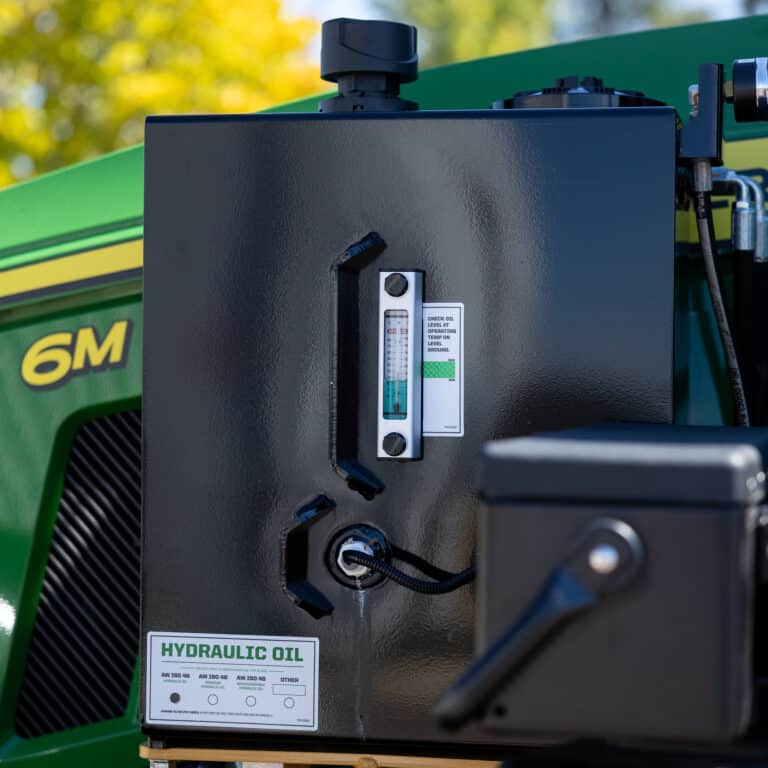

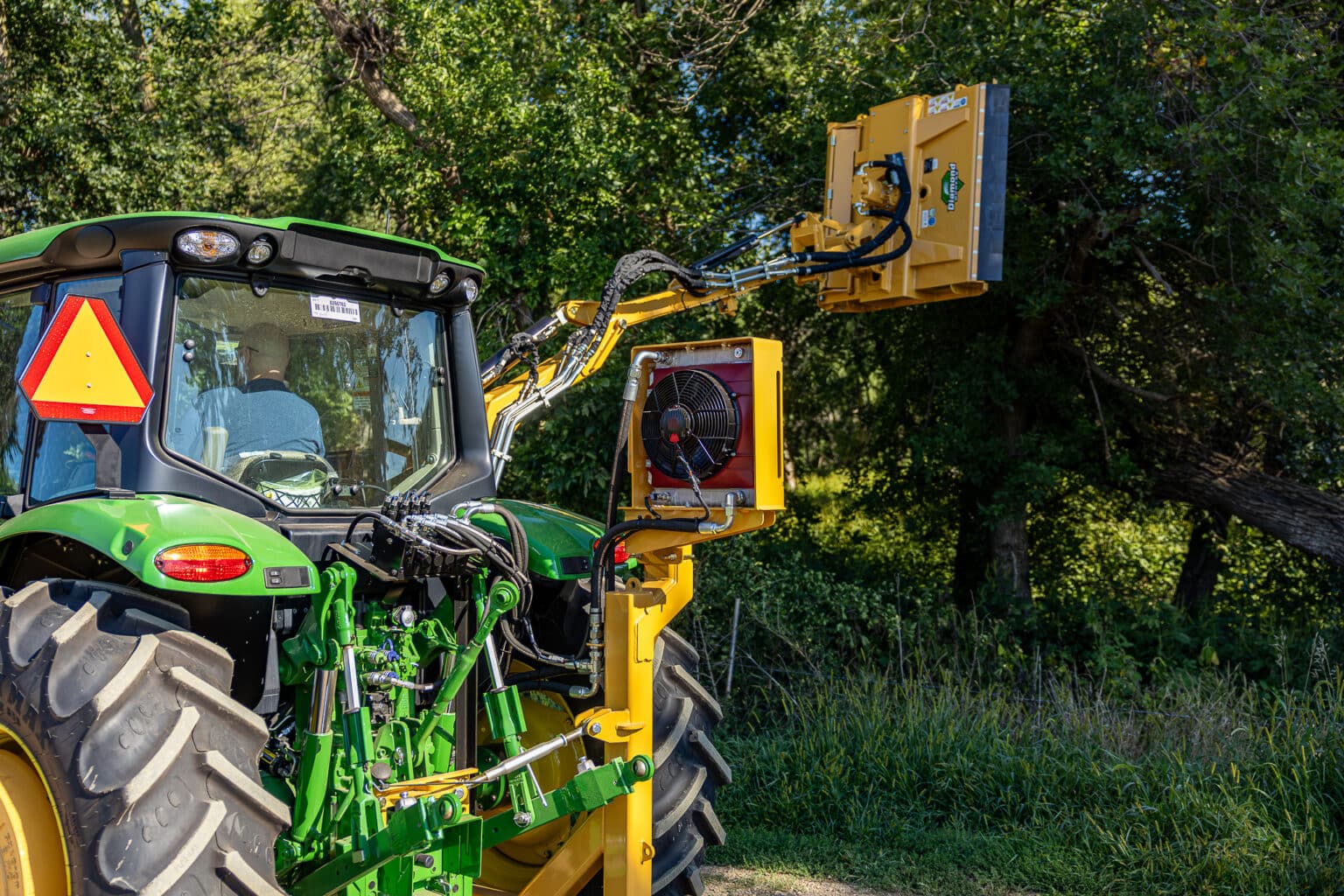

Hydraulic Improvements

The hydraulic reservoir and filtering system received premium upgrades, including an optimized, compact tank to run oil through the cooler two times more frequently, helping to regulate temperature and reduce thermal breakdown.

Upgraded filtering ensures cleaner oil circulation, extending the life of key components and reducing wear in high-demand applications.
The hydraulic cooler has also been relocated to the back of the tractor, preventing interference with headlights and providing better visibility during early morning or nighttime work.

mid mount boom motor hydraulic fluid tank

Additional Features

Keeping Your Machine Active

Designed with feedback from operators who shoulder the work, the Mid-Mount Boom System is crafted with these features:

A shatter resistant window provides greater cab protection, and comes standard for right-hand doors or windows.
Customizable boom sensitivity control allows operator to tailor the boom responsiveness to the task at hand
A more robust hydraulic valve offers better resistance to contamination while improving control and responsiveness.
The hydraulic reservoir includes a level sensor that will alert the operator and disable both the mower and boom control in the event the oil is low.
The fully enclosed hydraulic actuator provides breakaway protection in both forward and reverse, offering a larger range of motion than traditional swing cylinders.
Standard axle stabilizer replaces wheel weights, maintaining industry-leading stability*.
*Axle stabilizer will use one set of tractor remotes.

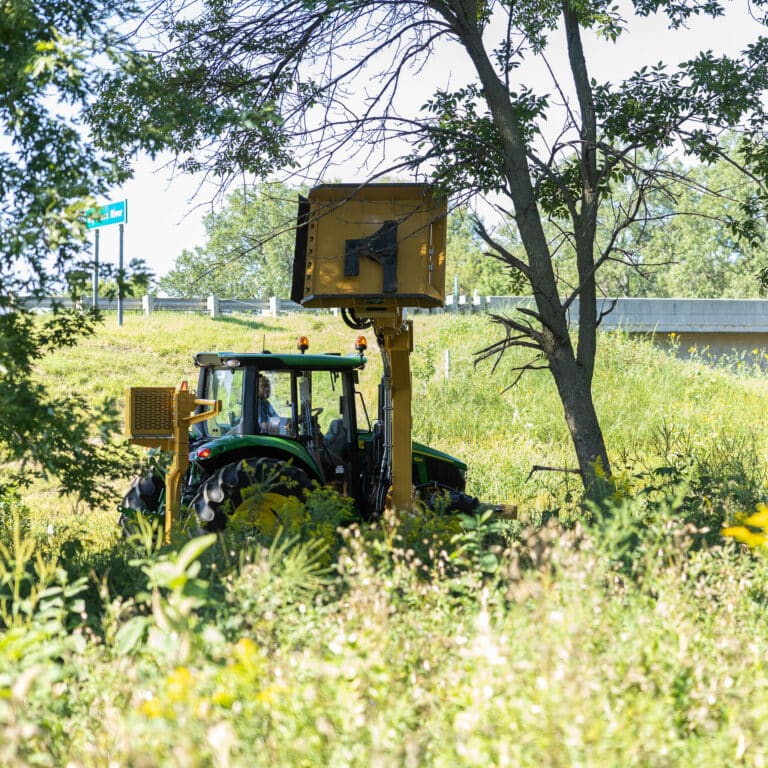

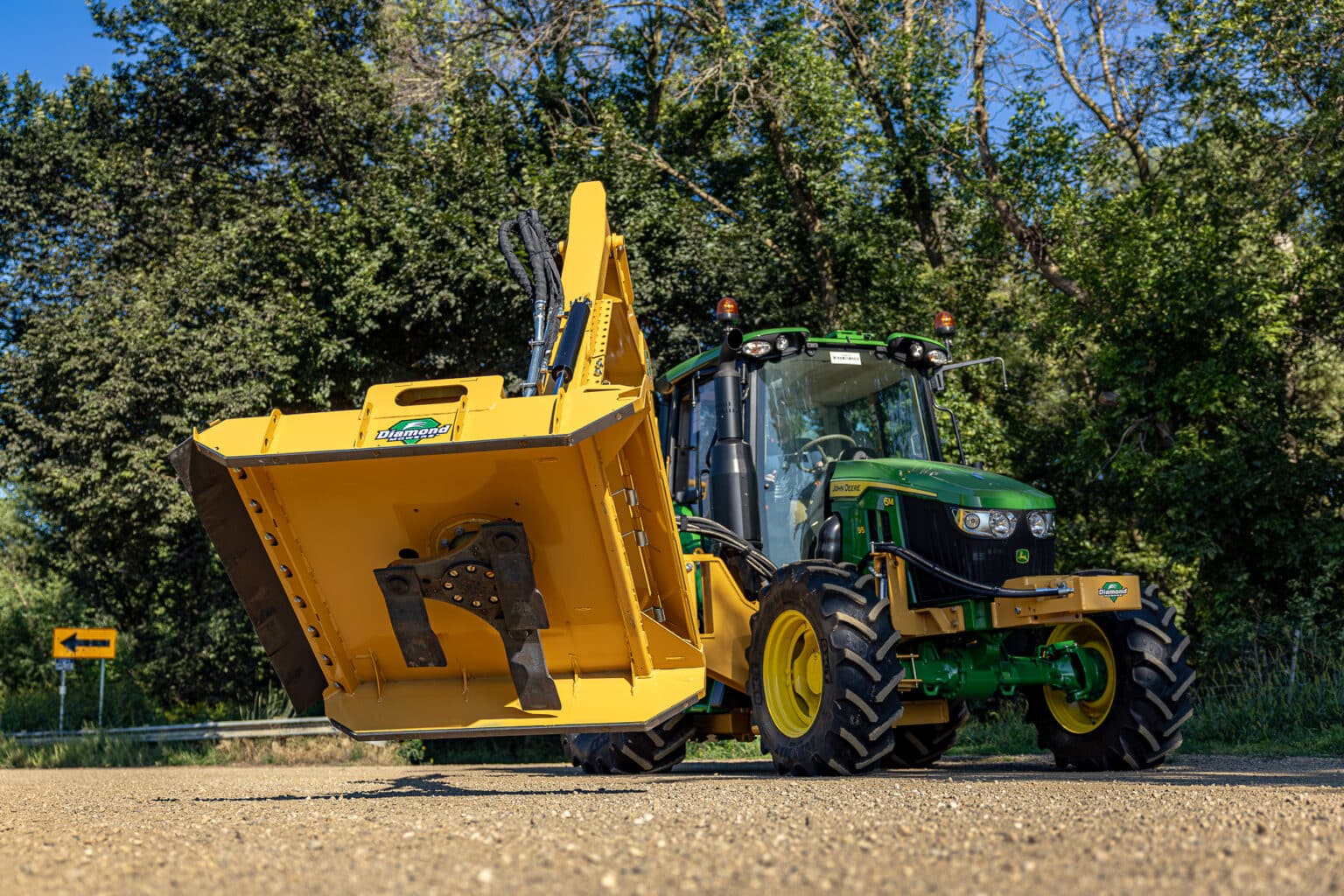

tractor with a mid mount boom rotary mower attached

Boom Cutting Heads

Versatile Cutting Solutions For Every Job

WARRANTY INFORMATION

Drum Mulcher DC Pro X

Cut, process, and clear trees and brush

30″ | 50″ Cutting widths
Cuts up to 8″ material
Three cutting teeth options
Optimized Infeed System
Variable Displacement Piston Motor
Severe Duty Rated Bearings
Removable Bolt-on Door
Abrasion Resistant AR 400 Liner

Rotary Mower

Shreds thick brush and trees

50″ | 60″ Cutting widths
Cuts up to 4″ material continuously and 8″ material intermittently
Oil bath spindle 260% stronger than greaseable spindle

Flail Mower

Perfect for removing grass and brush

44″ | 50″ Cutting widths cut up to 3″ material continuously and up to 6″ material
Ideal for a cleaner, more finished look

Disc Mulcher

Ideal for mulching and cutting purposes

36″ Cutting width
Cuts up to 8″ material and mulches up to 5″ material
Replaceable, hardened steel teeth

Saw Blade

Saws tree limbs with ease

48″ Cutting width
Cuts up to 10″ material
Slices material with replaceable carbide teeth
Delivers clean, finished look

Ditcher

Clears culverts and ditches

22″ Cutting width
Uses three, 3/8″ thick replaceable knives
Equipped with hydraulic chute to direct exhausted material

Available Options

HYDRAULIC TRAP DOOR

Available for 50″ and 60″ Rotary Mowers and 50″ Flail Mowers
Exposes blade to easily feed material

optional clutch for a mid mount boom tractor attachment

HYDRAULIC PUMP CLUTCH

Unique to Diamond Mowers’ boom systems
Allows the operator to instantly stop the hydraulic pump, reducing unnecessary wear

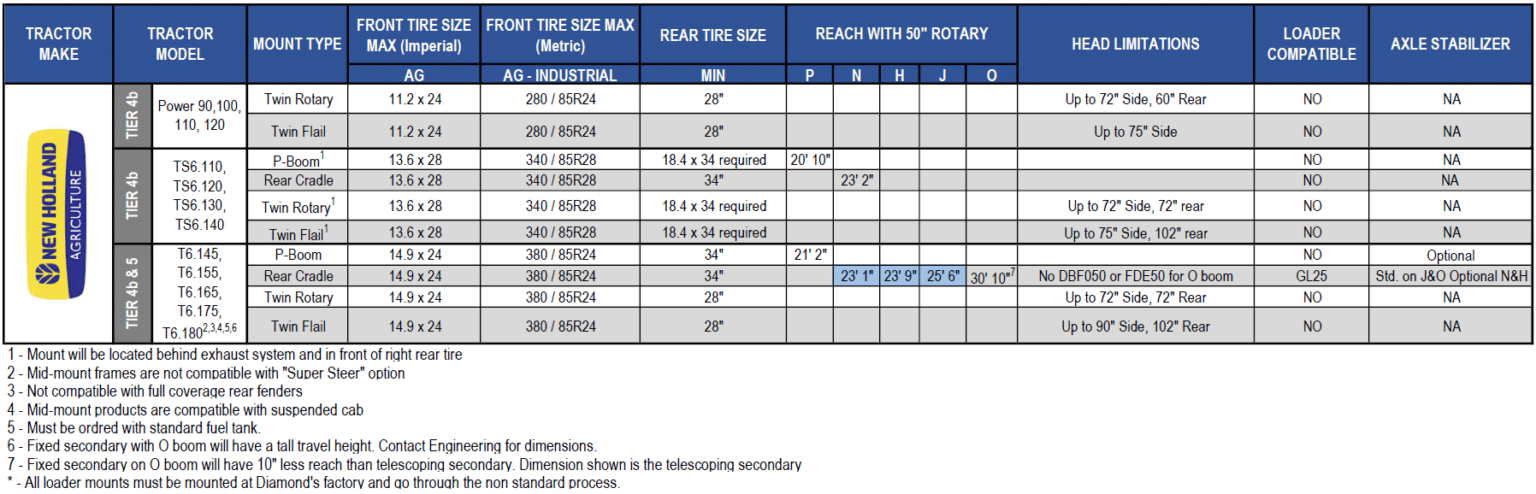

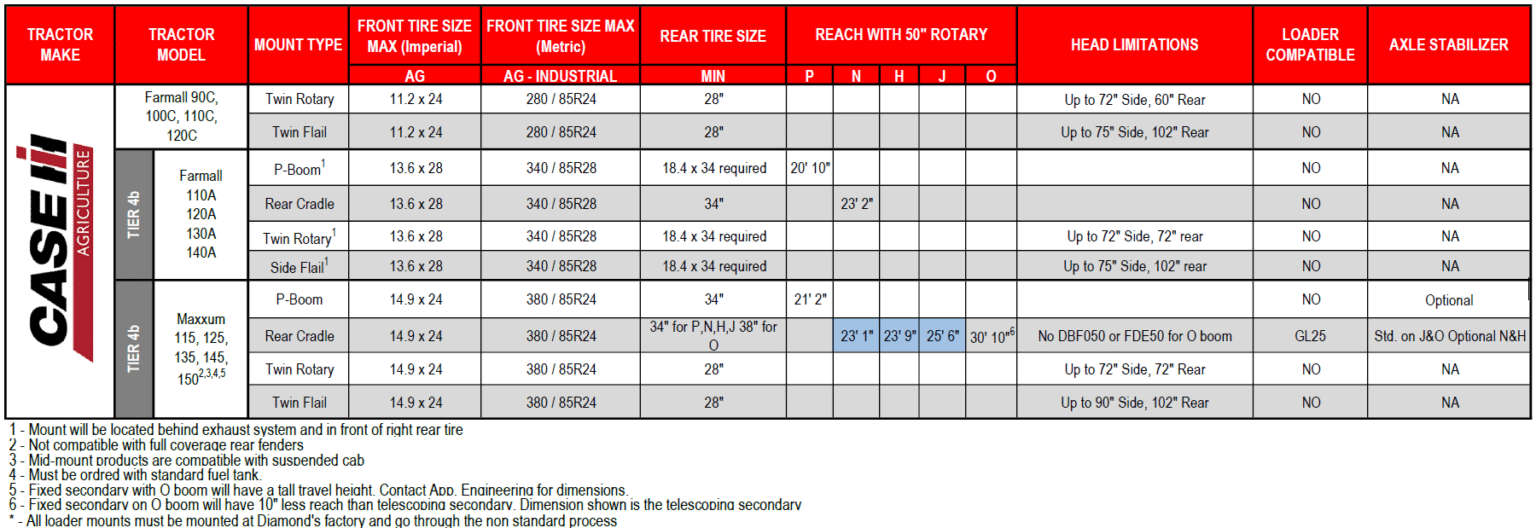

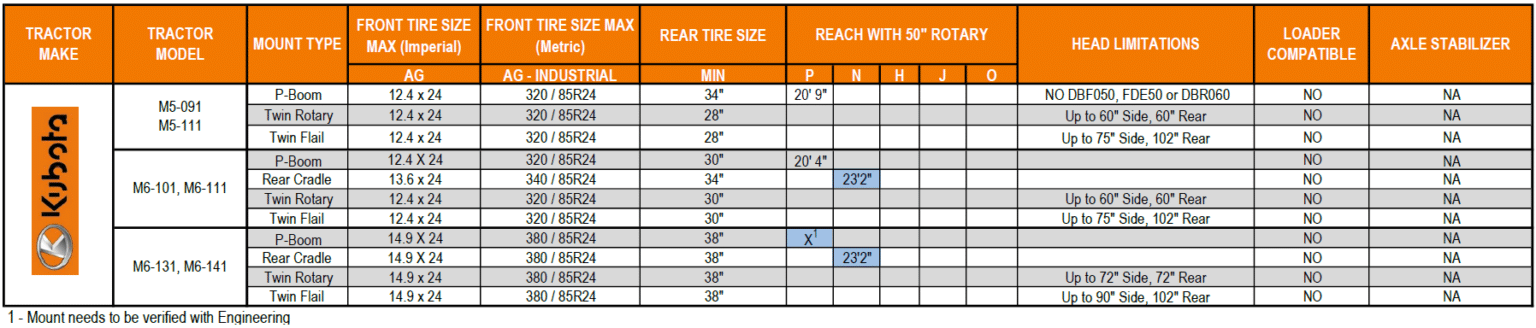

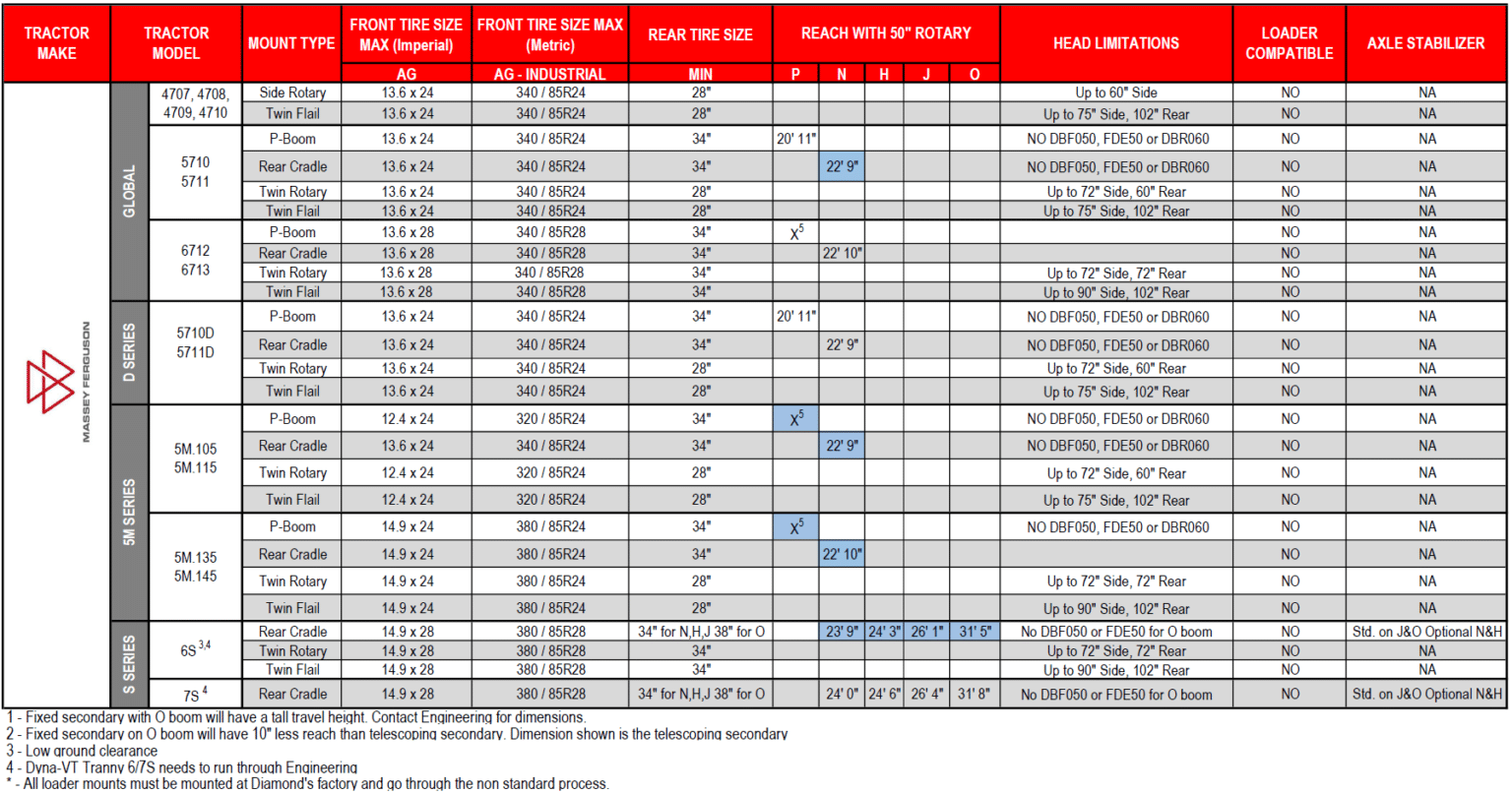

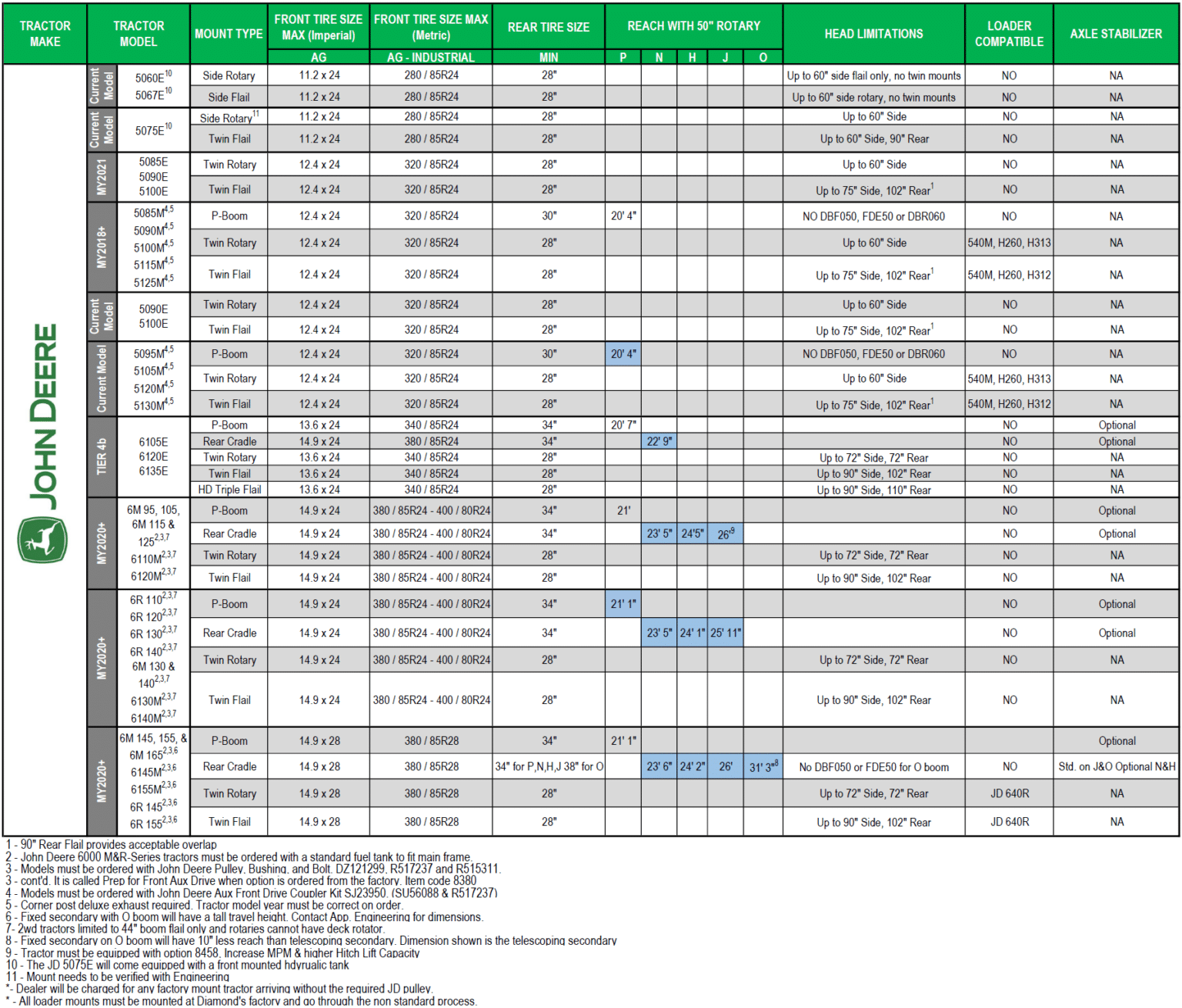

Check Compatibility

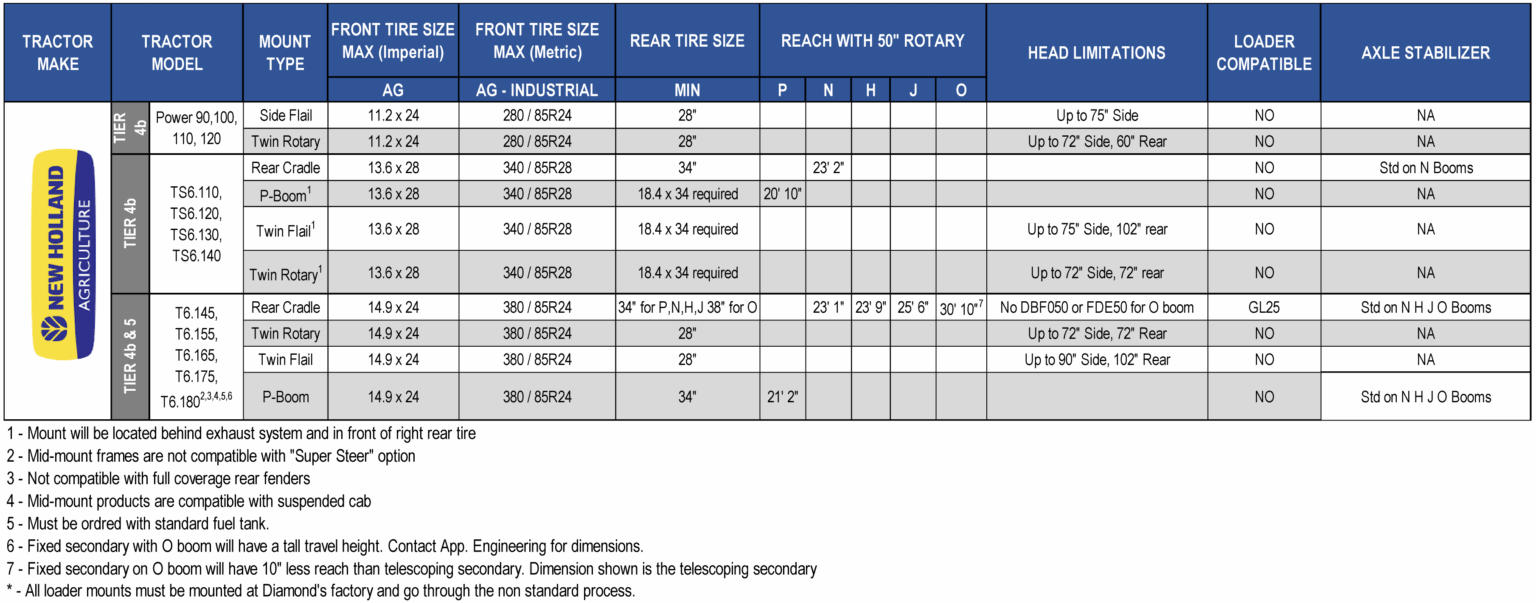

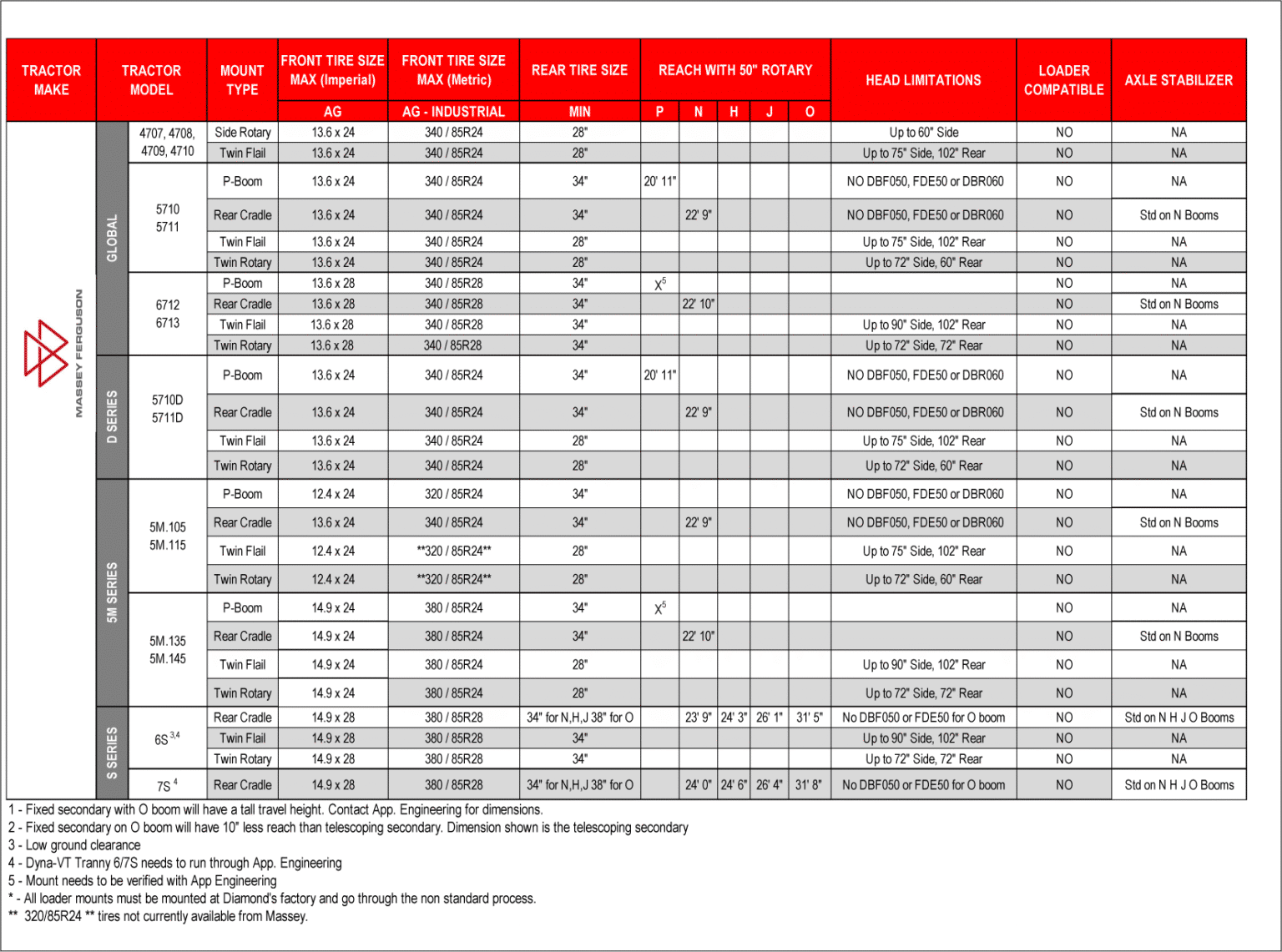

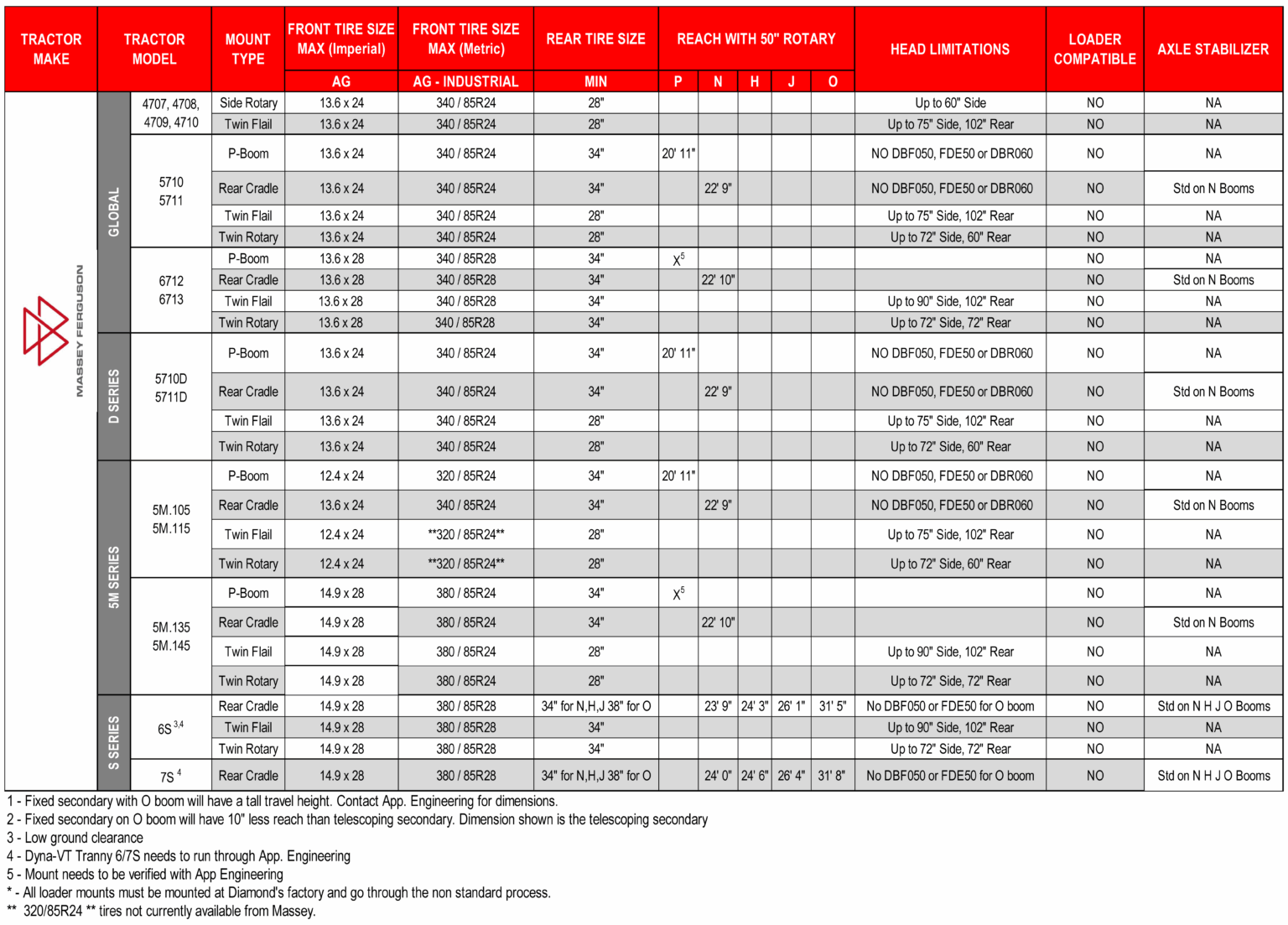

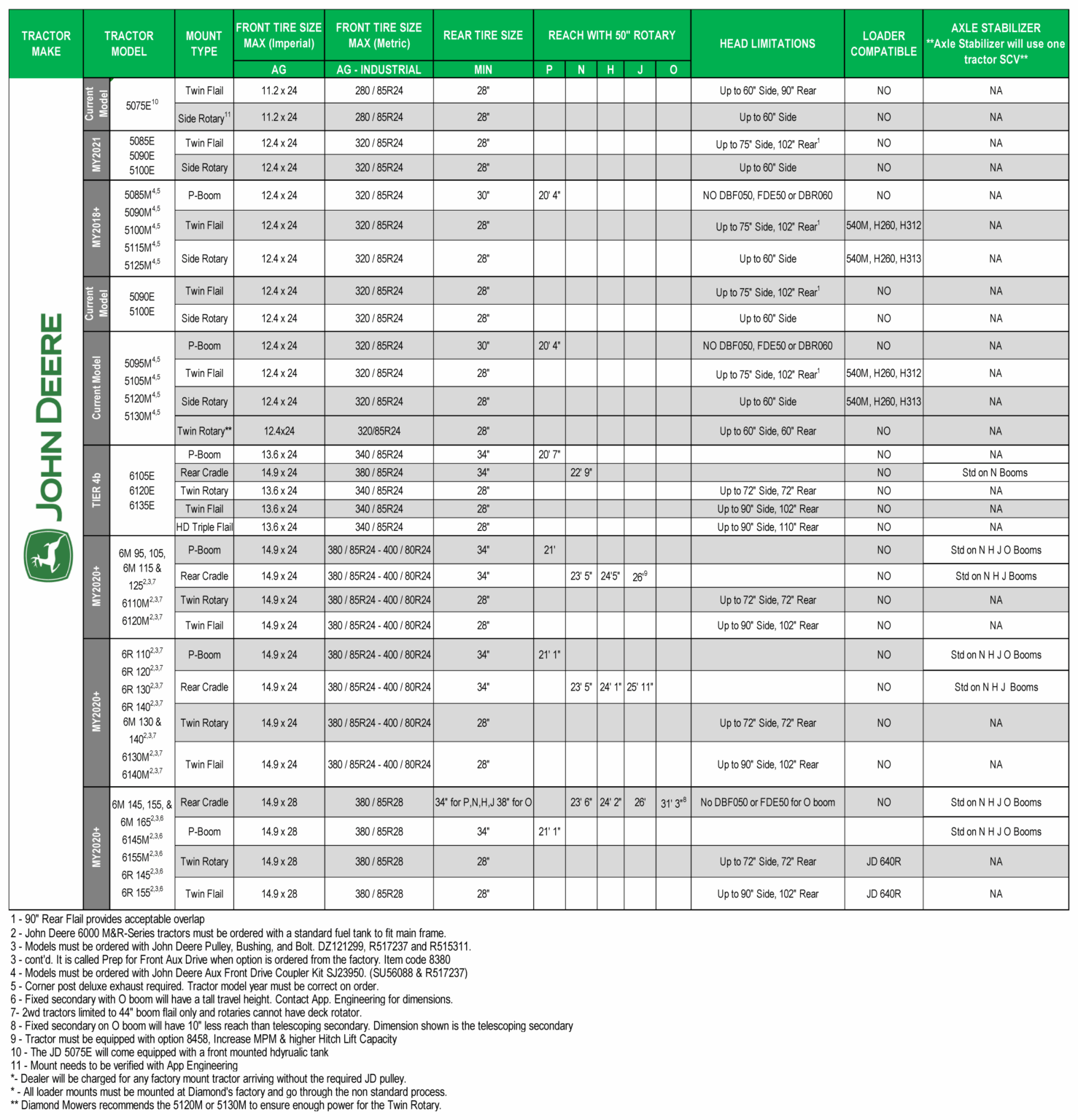

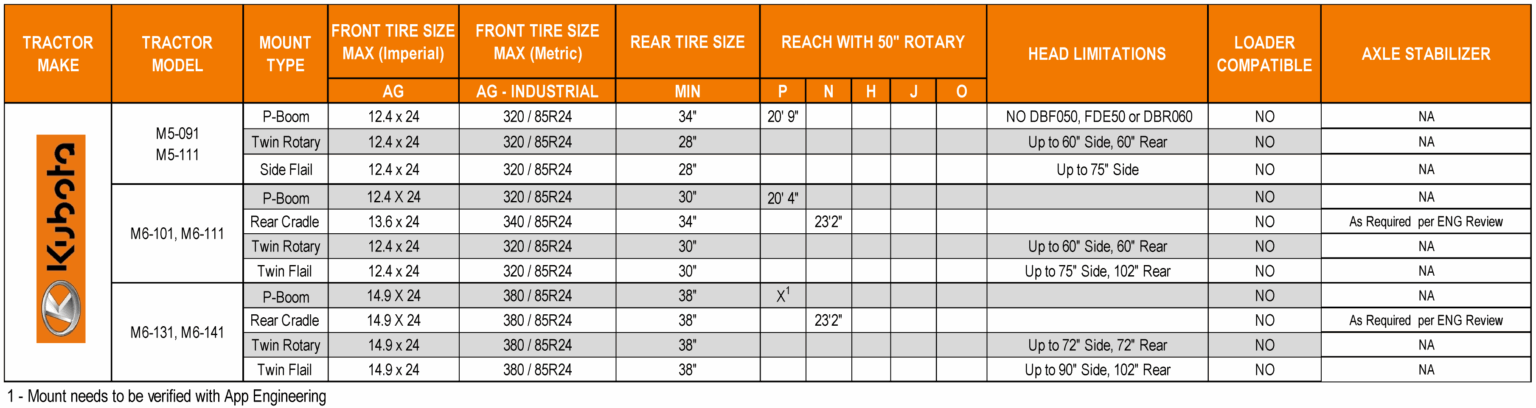

Select the make of your carrier to view the corresponding compatibility chart.
Don’t see your model listed? Reach out to Diamond for more information.

Q-LINK

Maximize Your Existing Mid-Mount Tractors

Diamond’s Q-Link allows operators to further maximize their existing mid-mount tractors for other jobs such as sweeping or snow blowing outside of mowing season.

Benefits of the Q-link include:

Ability to install and remove front pump assembly, allowing the 3-PT hitch and
PTO to be used
Keeps the rear 3-PT hitch and PTO available for other equipment
Equipped with stands, hydraulic quick couplers and weather proof caps for all hydraulic and electrical connections – all for easy storage, quick installation and quick removal!
Allows the operator to turn the hydraulic pump on and off, using less fuel
